2001 Kawasaki MULE 2510 4X4 Diesel Cables OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CABLES

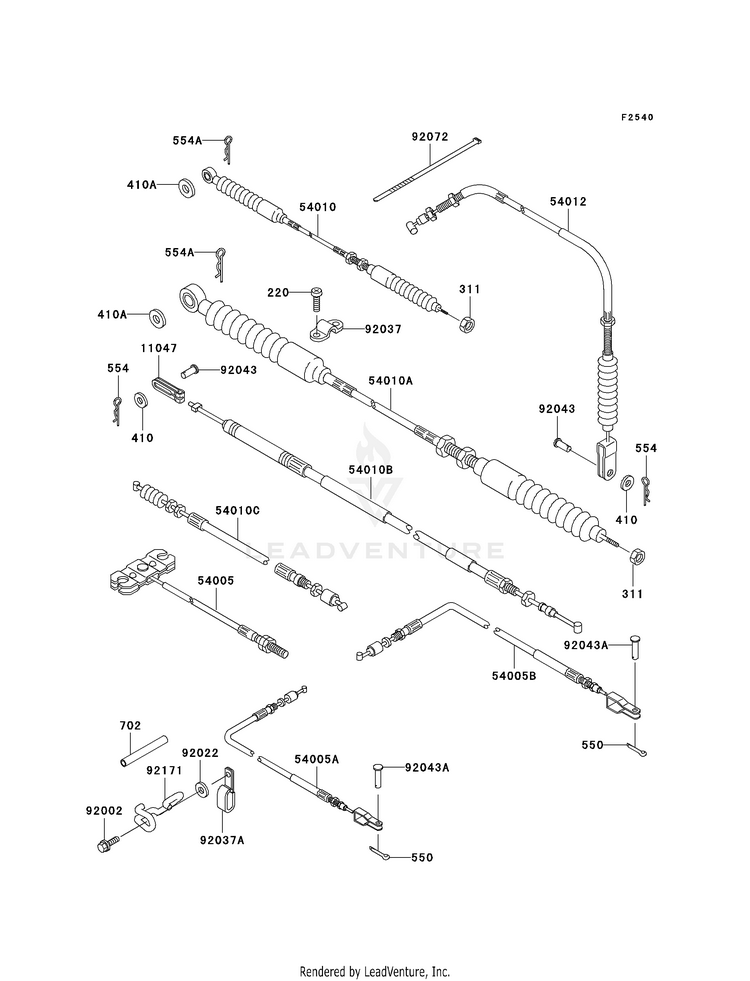

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1104711055-7505

(replaces part #
11047-1043)

BRACKET,DIFF LOCK
Usually ships in 7-10 business days
220220AA0514

(replaces part #
220D0514)

SCREW-PAN-CROS,5X14
10+ In-Stock
311311AA0600

(replaces part #
311B0600)

NUT-HEX,6MM
10+ In-Stock
410410AA0600

(replaces part #
410B0600)

WASHER-PLAIN-SMALL
10+ In-Stock
410A410AA0800

(replaces part #
410E0800)

WASHER-PLAIN-SMALL,8MM
10+ In-Stock
5400554005-1198CABLE-BRAKE,PARKING,FR
54005A54005-1201CABLE-BRAKE,PARKING,R
2 In-Stock
54005B54005-1202CABLE-BRAKE,PARKING,R
2 In-Stock
5401054010-1089CABLE,SHIFT CONTROL
2 In-Stock
54010A54010-1090CABLE,HI-LOW
Usually ships in 7-10 business days
54010B54010-1091CABLE,DIFF LOCK
Not Shipping
54010C54010-1093CABLE,2WD/4WD
1 In-Stock
5401254012-1613CABLE-THROTTLE
1 In-Stock
550550AA2022

(replaces part #
550D2022)

PIN-COTTER,2.0X22
6 In-Stock
554554DA0600

(replaces part #
554A0600)

PIN-SNAP,1.2X21.2
9 In-Stock
554A554DA0800

(replaces part #
554A0800)

PIN-SNAP
10+ In-Stock
702702A0555TUBE-RUBBER,5X8X55
Usually ships in 7-10 business days
9200292002-1589BOLT,8X14
Usually ships in 7-10 business days
9202292022-1317WASHER,8.5X20X1.6,BLACK
10+ In-Stock
9203792037-1933CLAMP,CABLE
Usually ships in 7-10 business days
92037A92037-2204CLAMP
Usually ships in 7-10 business days
9204392043-092PIN,6X11
Usually ships in 7-10 business days
92043A92043-1039PIN
7 In-Stock
9207292072-1239BAND,L=188
9 In-Stock
9217192171-1210CLAMP,BRAKE CABLE
Usually ships in 7-10 business days
