2001 Kawasaki MULE 2510 4X4 Diesel Frame Fittings (Lever) OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME FITTINGS (LEVER)

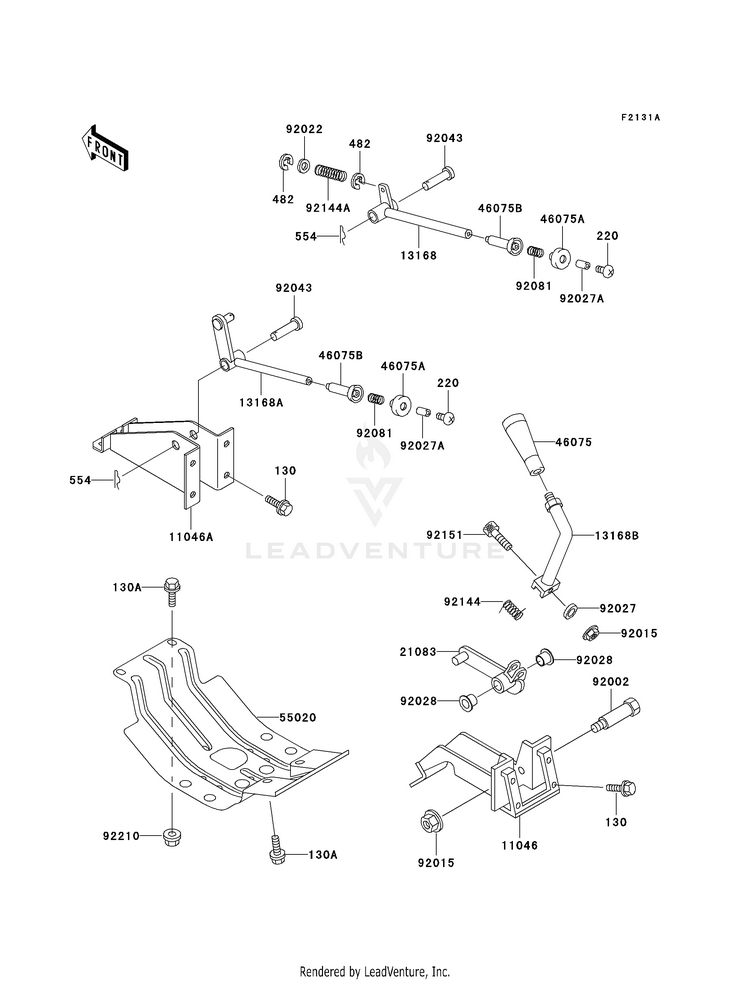

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1104611046-1677BRACKET,SHIFT LEVER
Usually ships in 7-10 business days
11046A11046-1751BRACKET,HI-LOW RANGE
Usually ships in 7-10 business days
130130AB0612

(replaces part #
130C0612)

BOLT-FLANGED,6X12
Usually ships in 7-10 business days
130A130BA1016

(replaces part #
130G1016)

BOLT-FLANGED,10X16
6 In-Stock
1316813168-1428LEVER,DIFF MODE CONTROL
Usually ships in 7-10 business days
13168A13168-1430LEVER,HI-LOW RANGE
Usually ships in 7-10 business days
13168B13168-1440LEVER,SHIFT
Usually ships in 7-10 business days
2108321083-1142ARM,SHIFT LEVER
Not Shipping
220220AB0514

(replaces part #
220C0514)

SCREW-PAN-CROS,5X14
10+ In-Stock
4607546075-1075GRIP,SHIFT LEVER
Not Shipping
46075A46075-1085GRIP,UPP
1 In-Stock
46075B46075-1086GRIP,LWR
1 In-Stock
482482EA8000

(replaces part #
482L8000)

CIRCLIP-TYPE-E,8MM
5 In-Stock
5502055020-0171

(replaces part #
55020-1343)

GUARD,FRONT DIFF CASE
Usually ships in 7-10 business days
554554DA1000

(replaces part #
554A1000)

PIN-SNAP,10MM
10+ In-Stock
9200292002-1984BOLT
1 In-Stock
9201592015-1675NUT,LOCK,FLANGED,6MM
10+ In-Stock
9202292022-044WASHER,10.5X26X2.3
8 In-Stock
9202792027-1066COLLAR,6.3X10X4.8
Not Shipping
92027A92027-1987COLLAR
8 In-Stock
9202892028-1507BUSHING
10+ In-Stock
9204392043-1069PIN,10X34
Usually ships in 7-10 business days
9208192081-1714SPRING
3 In-Stock
9214492144-1175SPRING
Not Shipping
92144A92144-1510SPRING
Usually ships in 7-10 business days
9215192151-1128BOLT
Usually ships in 7-10 business days
9221092210-1204NUT,LOCK,10MM
10+ In-Stock
