2001 Kawasaki MULE 2510 4X4 Diesel Front Suspension OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION

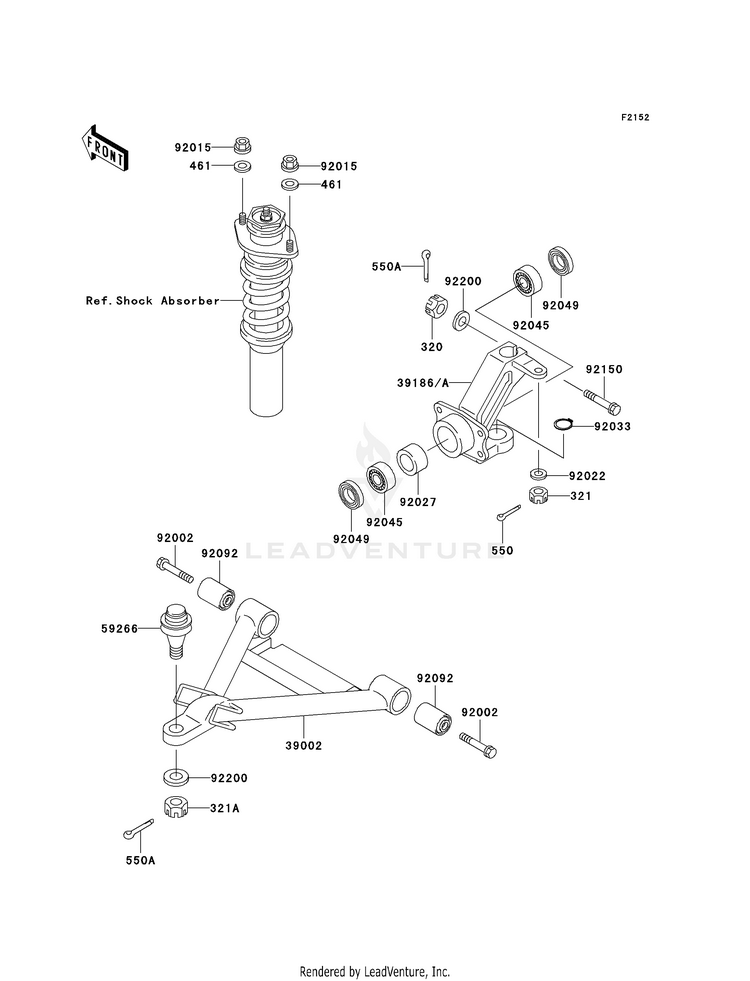

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
32092210-7501

(replaces part #
320G1200)

NUT,12MM
7 In-Stock
321321BA1000

(replaces part #
321H1000)

NUT-CASTLE
9 In-Stock
321A321BA1200

(replaces part #
321H1200)

NUT-CASTLE,12MM
5 In-Stock
3900239002-0004

(replaces part #
39002-1054)

ARM-COMP-SUSP
Usually ships in 7-10 business days
3918639186-0327

(replaces part #
39186-1096)

KNUCKLE,FR,LH
1 In-Stock
39186A39186-0328

(replaces part #
39186-1097)

KNUCKLE,FR,RH
3 In-Stock
461461DA1000

(replaces part #
461L1000)

WASHER-SPRING,10MM
10+ In-Stock
550550AA2022

(replaces part #
550D2022)

PIN-COTTER,2.0X22
6 In-Stock
550A550AA3025

(replaces part #
550D3025)

PIN-COTTER,3.0X25
10+ In-Stock
5926659266-1080JOINT-BALL
9 In-Stock
9200292002-1661BOLT,FLANGED,12X75
Usually ships in 7-10 business days
9201592015-1428

(replaces part #
92015-1366)

NUT,FLANGED,10MM
8 In-Stock
9202292022-1876WASHER,10.5X18X2.5
8 In-Stock
9202792027-1538COLLAR,L=34.5
6 In-Stock
9203392033-1262RING-SNAP,C-TYPE,32MM
10+ In-Stock
9204592045-3707BEARING-BALL
10+ In-Stock
9204992049-1513SEAL-OIL,SD35X47X7HS
10+ In-Stock
9209292092-1065BUSHING-RUBBER
10+ In-Stock
9215092150-1356BOLT,FLANGED,12X72
Usually ships in 7-10 business days
9220092200-1004WASHER,12.3X23X2.3
10+ In-Stock
