2001 Kawasaki MULE 2510 4X4 Diesel Water Pump OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

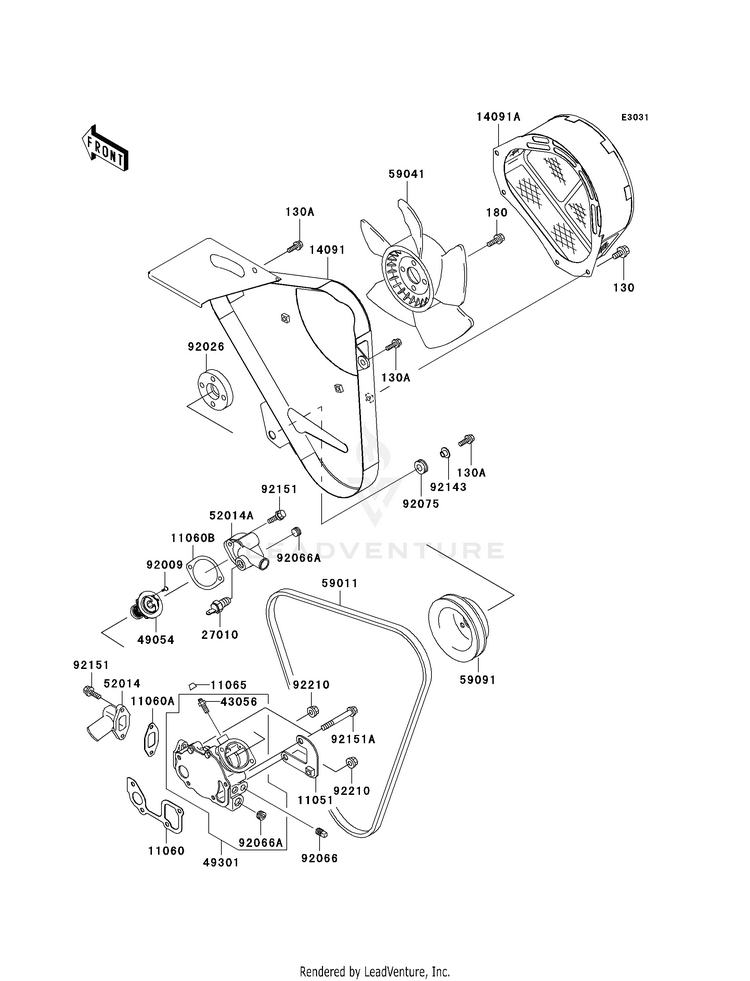

WATER PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105111051-1567BRACKET,BELT COVER
Usually ships in 7-10 business days
1106011060-1957GASKET,WATER PUMP
6 In-Stock
11060A11060-1958GASKET,ELBOW,INLET
2 In-Stock
11060B11060-1959GASKET,ELBOW,OUTLET
4 In-Stock
1106511065-1155CAP,BREATHER
Usually ships in 7-10 business days
130130BB0610

(replaces part #
130J0610)

BOLT-FLANGED,6X10
10+ In-Stock
130A130BB0616

(replaces part #
130J0616)

BOLT-FLANGED,6X16
10+ In-Stock
1409114091-0126

(replaces part #
14091-1136)

COVER,BELT
Usually ships in 7-10 business days
14091A14091-0010

(replaces part #
14091-1222)

COVER
Usually ships in 7-10 business days
180180BB0622

(replaces part #
180J0622)

BOLT-UPSET-WS
Usually ships in 7-10 business days
2701027010-1414SWITCH,THERMOSTAT
Usually ships in 7-10 business days
4305643056-1057BREATHER-PUMP
Usually ships in 7-10 business days
4905449054-1068THERMOSTAT
4 In-Stock
4930149301-1052PUMP-ASSY-WATER
Usually ships in 7-10 business days
5201452014-1095ELBOW,INLET
Usually ships in 7-10 business days
52014A52014-1096ELBOW,OUTLET
Usually ships in 7-10 business days
5901159011-1075BELT
6 In-Stock
5904159041-1060FAN
2 In-Stock
5909159091-1105PULLEY
Usually ships in 7-10 business days
9200992009-1915SCREW,TAPPING,2.6X8
Usually ships in 7-10 business days
9202692026-1571SPACER
Usually ships in 7-10 business days
9206692066-1531PLUG,WATER PUMP
Usually ships in 7-10 business days
92066A92066-1532PLUG,ELBOW OUTLET
Usually ships in 7-10 business days
9207592075-161DAMPER
4 In-Stock
9214392143-1057COLLAR
10+ In-Stock
9215192151-1667BOLT,6X20
Usually ships in 7-10 business days
92151A92151-1690BOLT,8X50
Usually ships in 7-10 business days
9221092210-1216NUT,8MM
Usually ships in 7-10 business days
