2001 Kawasaki MULE 2510 4X4 Diesel Guards/Cab Frame OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GUARDS/CAB FRAME

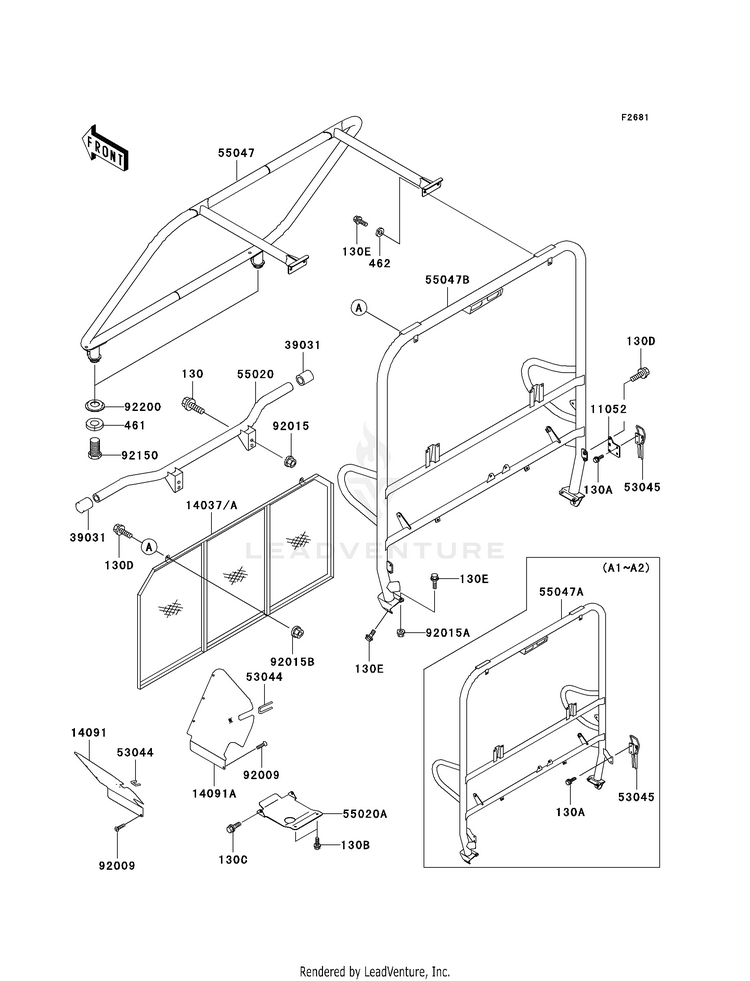

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA1225

(replaces part #
130G1225)

BOLT-FLANGED,12X25
10+ In-Stock
130A130BB0614

(replaces part #
130J0614)

BOLT-FLANGED,6X14
10+ In-Stock
130B130BB0616

(replaces part #
130J0616)

BOLT-FLANGED,6X16
10+ In-Stock
130C130CB0814

(replaces part #
130J0814)

BOLT-FLANGED,8X14
7 In-Stock
130D130BB0820

(replaces part #
130J0820)

BOLT-FLANGED,8X20
10+ In-Stock
130E130BB1020

(replaces part #
130J1020)

BOLT-FLANGED,10X20
Usually ships in 7-10 business days
14037A14037-0016-10

(replaces part #
14037-1287)

SCREEN,REAR GUARD,BLA
1 In-Stock
1409114091-1142COVER,FR,LH
Usually ships in 7-10 business days
14091A14091-1143COVER,FR,RH
Usually ships in 7-10 business days
3903139031-1059CAP-END,BUMPER PIPE
3 In-Stock
461461DA2000

(replaces part #
461F2000)

WASHER-SPRING,20MM
Usually ships in 7-10 business days
462462DB1000

(replaces part #
462K1000)

WASHER-SPRING,10MM
Usually ships in 7-10 business days
5304453044-1137TRIM
Usually ships in 7-10 business days
5304553045-1063HOOK-ASSY
2 In-Stock
5502055020-1471GUARD,FRONT BUMPER
Usually ships in 7-10 business days
55020A55020-1692GUARD,GEAR CASE
Usually ships in 7-10 business days
5504755047-1004BAR-COMP,CAB FRAME,FR
Usually ships in 7-10 business days
55047A55047-1011BAR-COMP,CAB FRAME,RR
Usually ships in 7-10 business days
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
9201592015-1426

(replaces part #
92015-1156)

NUT,12MM
10+ In-Stock
92015A92015-1428

(replaces part #
92015-1366)

NUT,FLANGED,10MM
8 In-Stock
92015B92210-0005

(replaces part #
92015-1696)

NUT,FLANGED,LOCK,8MM
Usually ships in 7-10 business days
9215092150-1325BOLT,20X35
Usually ships in 7-10 business days
9220092200-1032WASHER
Usually ships in 7-10 business days
