2001 Kawasaki MULE 2510 4X4 Diesel Crankcase OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

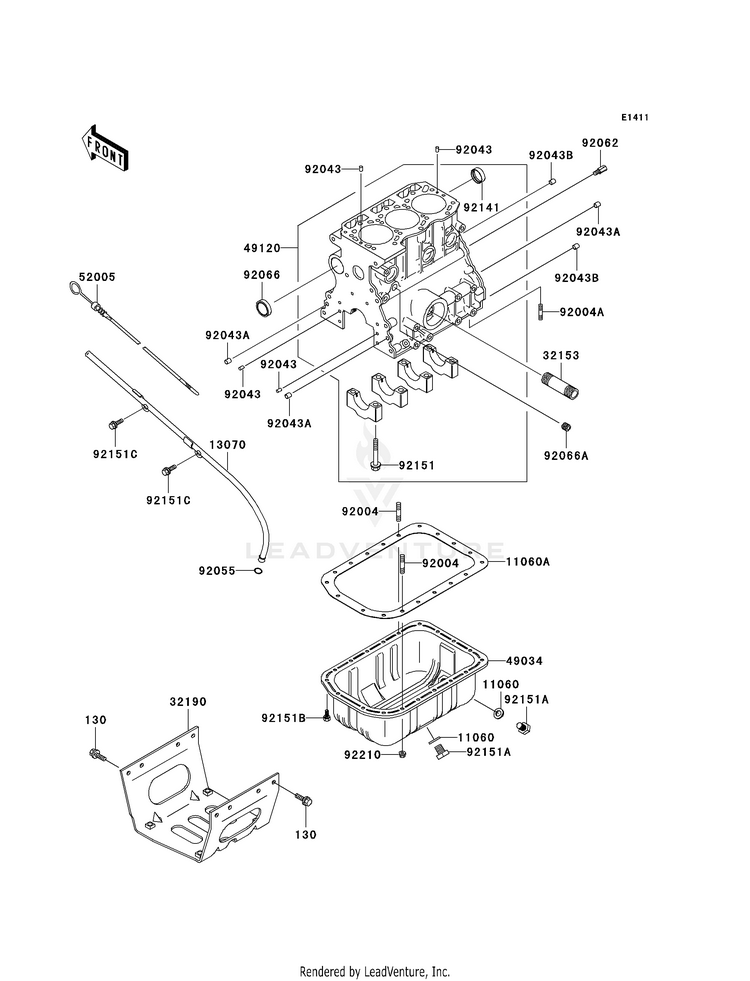

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-1942GASKET,OIL DRAIN BOLT
4 In-Stock
11060A11060-1943GASKET,OIL PAN
Usually ships in 7-10 business days
130130BB0816

(replaces part #
130J0816)

BOLT-FLANGED,8X16
10+ In-Stock
1307013070-1350GUIDE,GAUGE
Usually ships in 7-10 business days
3215332153-1355PIPE,OIL FILTER
Usually ships in 7-10 business days
3219032190-1187BRACKET-ENGINE
Usually ships in 7-10 business days
4903449034-0024

(replaces part #
49034-1135)

PAN-OIL
Usually ships in 7-10 business days
4912049120-0817

(replaces part #
49120-1077)

CRANKCASE-COMP
Usually ships in 7-10 business days
5200552005-1139GAUGE,OIL
Usually ships in 7-10 business days
9200492004-1261STUD,6X10
Usually ships in 7-10 business days
92004A92004-1262STUD,6X14
Usually ships in 7-10 business days
9204392043-1609PIN,6MM
Usually ships in 7-10 business days
92043A92043-1610PIN,8MM
Usually ships in 7-10 business days
92043B92043-1611PIN,8MM
Usually ships in 7-10 business days
9205592055-1625RING-O
Usually ships in 7-10 business days
9206292062-1088NOZZLE
Usually ships in 7-10 business days
9206692066-1526PLUG
Usually ships in 7-10 business days
92066A92066-1527PLUG,CRANKCASE
Usually ships in 7-10 business days
9214192141-1053BUSHING,CRANKCASE
Usually ships in 7-10 business days
9215192151-1655BOLT,CRANKSHAFT
Usually ships in 7-10 business days
92151A92151-1656BOLT,OIL DRAIN BOLT
5 In-Stock
92151B92151-1657BOLT,6X12
Usually ships in 7-10 business days
92151C92151-1658BOLT,8X14
Usually ships in 7-10 business days
9221092210-1208NUT,6MM
Usually ships in 7-10 business days
