Assemblies

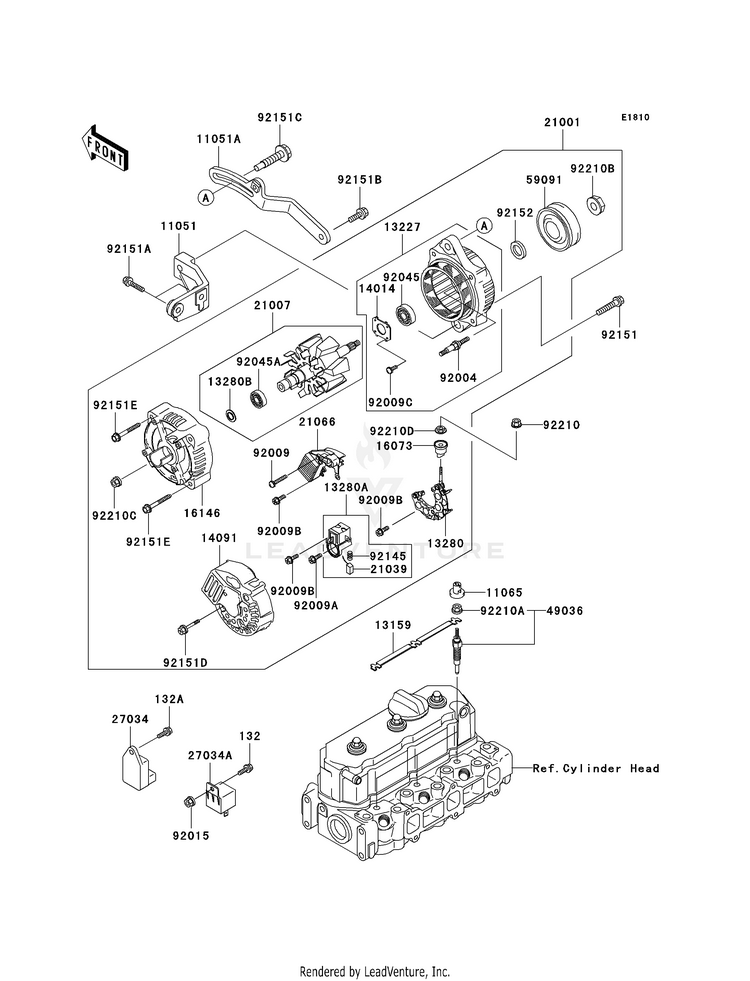

2001 Kawasaki MULE 2510 4X4 Diesel Generator OEM Parts Diagram

Submodel KAF950-A2 Mule 2510 Diesel

Shop Aftermarket Parts

GENERATOR

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11051	11051-1568	BRACKET,LWR	Usually ships in 7-10 business days
11051A	11051-1569	BRACKET,UPP	Usually ships in 7-10 business days
11065	11065-1150	CAP,GLOW	Usually ships in 7-10 business days
13159	13159-1066	CONNECTOR	Usually ships in 7-10 business days
132	132BB0512 (replaces part # 132J0512)	BOLT-FLANGED-SMALL,5X12	Usually ships in 7-10 business days
13227	13227-1139	HOUSING,ALTERNATOR	Usually ships in 7-10 business days
13280	13280-1173	HOLDER,RECTIFIER	Usually ships in 7-10 business days
13280A	13280-1174	HOLDER,ALTERNATOR BRU	Usually ships in 7-10 business days
13280B	13280-1175	HOLDER,BEARING	Usually ships in 7-10 business days
132A	132BB0612 (replaces part # 132J0612)	BOLT-FLANGED-SMALL,6X12	10+ In-Stock
14014	14014-1149	PLATE-POSITION	Usually ships in 7-10 business days
14091	14091-1207	COVER,REAR END	Usually ships in 7-10 business days
16073	16073-1122	INSULATOR	Usually ships in 7-10 business days
16146	16146-1214	COVER-ASSY,RECTIFIER	Usually ships in 7-10 business days
21001	21001-1176	GENERATOR	Usually ships in 7-10 business days
21007	21007-1368	ROTOR,ALTERNATOR	Usually ships in 7-10 business days
21039	21039-1068	BRUSH	Usually ships in 7-10 business days
21066	21066-1122	REGULATOR-VOLTAGE	Usually ships in 7-10 business days
27034	27034-1065	RELAY,HEATING TIMER	Usually ships in 7-10 business days
27034A	27034-1066	RELAY,GLOW	Usually ships in 7-10 business days
49036	49036-0001 (replaces part # 49036-1051)	PLUG-GLOW	10+ In-Stock
59091	59091-1106	PULLEY,ALTERNATOR	Usually ships in 7-10 business days
92004	92004-1273	STUD,ALTERNATOR HOUSI	Usually ships in 7-10 business days
92009	92009-1921	SCREW	Usually ships in 7-10 business days
92009A	92009-1922	SCREW	Usually ships in 7-10 business days
92009B	92009-1923	SCREW	Usually ships in 7-10 business days
92009C	92009-1924	SCREW,POSITION PLATE	Usually ships in 7-10 business days
92015	92015-1259	NUT,FLANGED,5MM	10+ In-Stock
92045	92045-1398	BEARING-BALL	Usually ships in 7-10 business days
92045A	92045-1399	BEARING-BALL	Usually ships in 7-10 business days
92145	92145-1312	SPRING,ALTERNATOR BRU	Usually ships in 7-10 business days
92151	92151-1691	BOLT,10X40	Usually ships in 7-10 business days
92151A	92151-1692	BOLT,8X25	Usually ships in 7-10 business days
92151B	92151-1693	BOLT,8X20	Usually ships in 7-10 business days
92151C	92151-1694	BOLT,8X45	Usually ships in 7-10 business days
92151D	92151-1715	BOLT	Usually ships in 7-10 business days
92151E	92151-1716	BOLT	Usually ships in 7-10 business days
92152	92152-1230	COLLAR	Usually ships in 7-10 business days
92210	92210-1210	NUT,6MM	Usually ships in 7-10 business days
92210A	92210-1218	NUT,GLOW PLUG,4MM	Usually ships in 7-10 business days
92210B	92210-1232	NUT,PULLEY	Usually ships in 7-10 business days
92210C	92210-1233	NUT	Usually ships in 7-10 business days
92210D	92210-1234	NUT	Usually ships in 7-10 business days
