1990 Yamaha XT600 Camshaft Chain OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

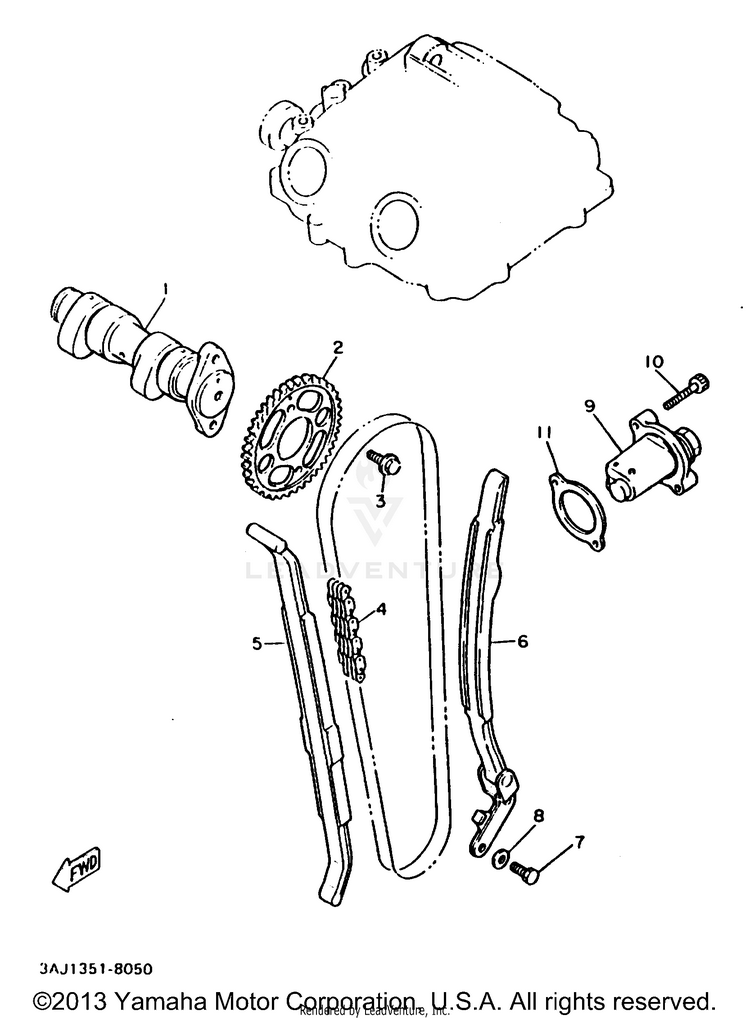

CAMSHAFT CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11JK-12171-00-00CAMSHAFT 1$246.99$192.65Usually ships in 7-10 business days
23TB-12176-00-00SPROCKET, CAM CHAIN$88.99$69.41Usually ships in 7-10 business days
390105-07004-00

(replaces part #
90105-07087-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
494591-40126-00

(replaces part #
94590-27126-00)

CHAIN (82RH2015-126)$69.99$54.5910+ In-Stock
534K-12231-01-00

(replaces part #
34K-12231-00-00)

GUIDE, STOPPER 1$52.99$41.331 In-Stock
634K-12241-01-00

(replaces part #
34K-12241-00-00)

GUIDE, STOPPER 2$133.99$104.511 In-Stock
797D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
892990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
93TB-12210-00-00TENSIONER ASSY, CAM CHAIN$153.99$120.1110+ In-Stock
1091317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
114DW-12213-00-00

(replaces part #
4X7-12213-00-00)

GASKET, TENSIONER CASE$8.49$6.6210+ In-Stock
