1990 Yamaha XT600 Electrical 2 OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

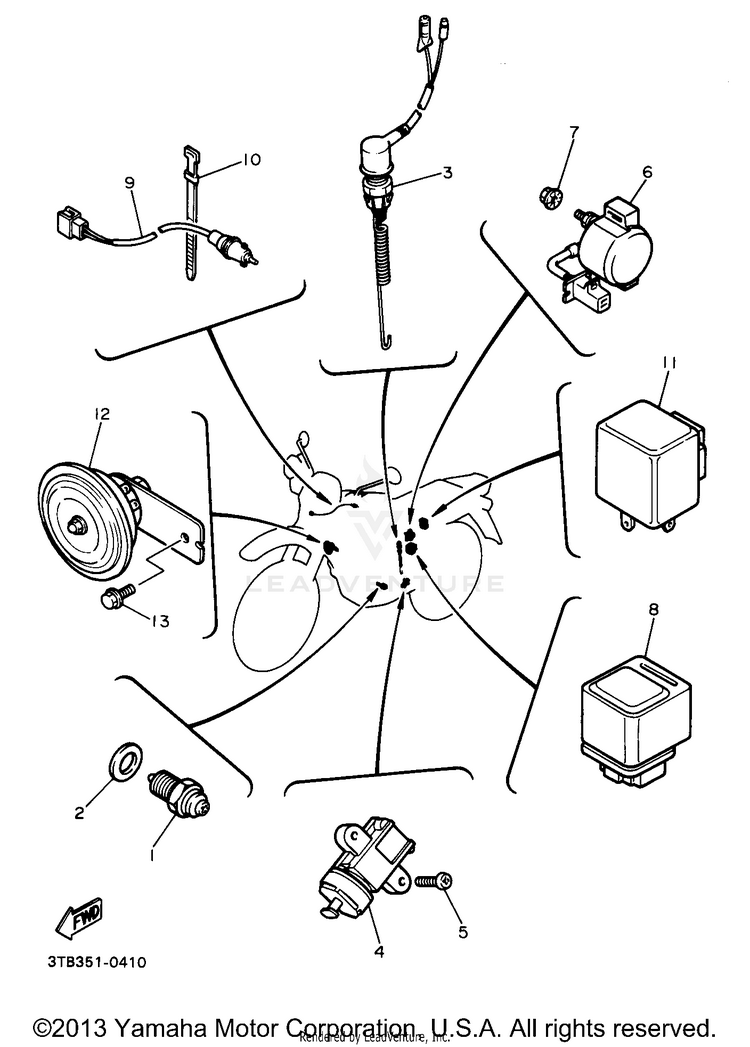

ELECTRICAL 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
290430-10171-00

(replaces part #
90430-10027-00)

BOLT, UNION$3.45$2.9710+ In-Stock
334L-82530-02-00

(replaces part #
34L-82530-01-00)

STOP SWITCH ASSEMBLY$26.99$22.13Not Shipping
43LD-82566-41-00

(replaces part #
3LD-82566-00-00)

SWITCH, SIDE STAND$75.99$59.27Usually ships in 7-10 business days
598507-05016-00

(replaces part #
98506-05016-00)

SCREW, WITH WASHER$1.80$1.5510+ In-Stock
64KD-81940-00-00

(replaces part #
3AY-81940-00-00)

STARTER RELAY ASSY (MS65D-611)$125.99$98.275 In-Stock
AFTERMARKET ALTERNATIVE
$18.99$12.4910+ In-Stock
795780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
812R-81950-02-00

(replaces part #
12R-81950-01-00)

RELAY ASSY$76.99$60.059 In-Stock
92GV-82917-00-00

(replaces part #
2NT-82917-00-00)

SWITCH$37.99$31.15Usually ships in 7-10 business days
1025G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
1130X-83350-20-00FLASHER RELAY ASSY$111.99$87.35Usually ships in 7-10 business days
122KG-83371-00-00

(replaces part #
3TB-83371-00-00)

HORN$93.99$73.31Usually ships in 7-10 business days
1395027-06010-00

(replaces part #
95026-06010-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
