1990 Yamaha XT600 Handle Switch Lever OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

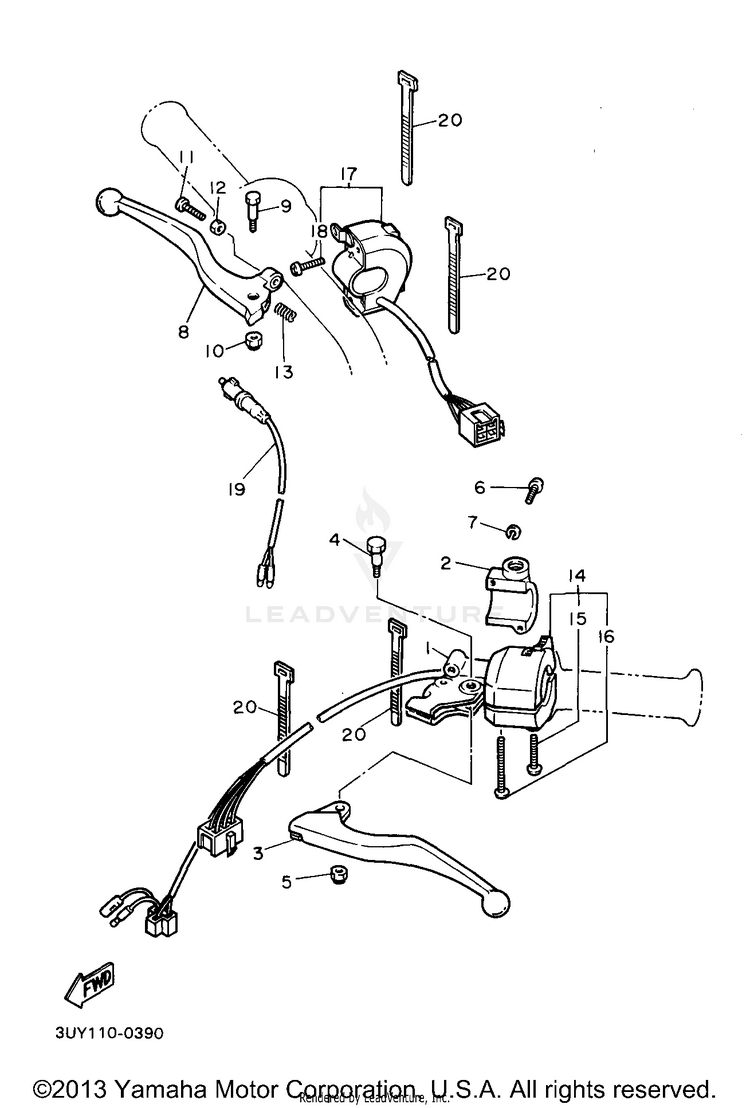

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LN-82911-00-00HOLDER, LEVER 1$44.99$35.092 In-Stock
233G-82913-01-00

(replaces part #
33G-82913-00-00)

HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
33FY-83912-02-00

(replaces part #
5Y1-83912-01-00)

LEVER 1$31.99$24.954 In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
698517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792907-05100-00

(replaces part #
92906-05100-00)

WASHER, SPRING$9.49$7.706 In-Stock
83YR-83922-02-00

(replaces part #
1KH-83922-01-00)

LEVER 2$30.99$25.411 In-Stock
990109-062A8-00BOLT$8.49$6.622 In-Stock
1095617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1190149-06131-00

(replaces part #
90149-06289-00)

SCREW$9.49$7.4010+ In-Stock
1290170-06010-00NUT$9.49$7.404 In-Stock
1390501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
143UY-83973-00-00SWITCH, HANDLE 3$155.99$121.67Usually ships in 7-10 business days
1590157-05057-00

(replaces part #
98506-05022-00)

SCREW, PAN HEAD$3.85$3.463 In-Stock
1698517-05030-00

(replaces part #
98506-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
173LD-83975-11-00

(replaces part #
3UY-83975-00-00)

SWITCH, HANDLE 2$185.99$145.071 In-Stock
1898517-05020-00

(replaces part #
98506-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
193YF-83980-00-00

(replaces part #
34X-83980-01-00)

STOP SWITCH ASY$51.99$40.55Usually ships in 7-10 business days
20437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
