1990 Yamaha XT600 Rear Brake Caliper OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

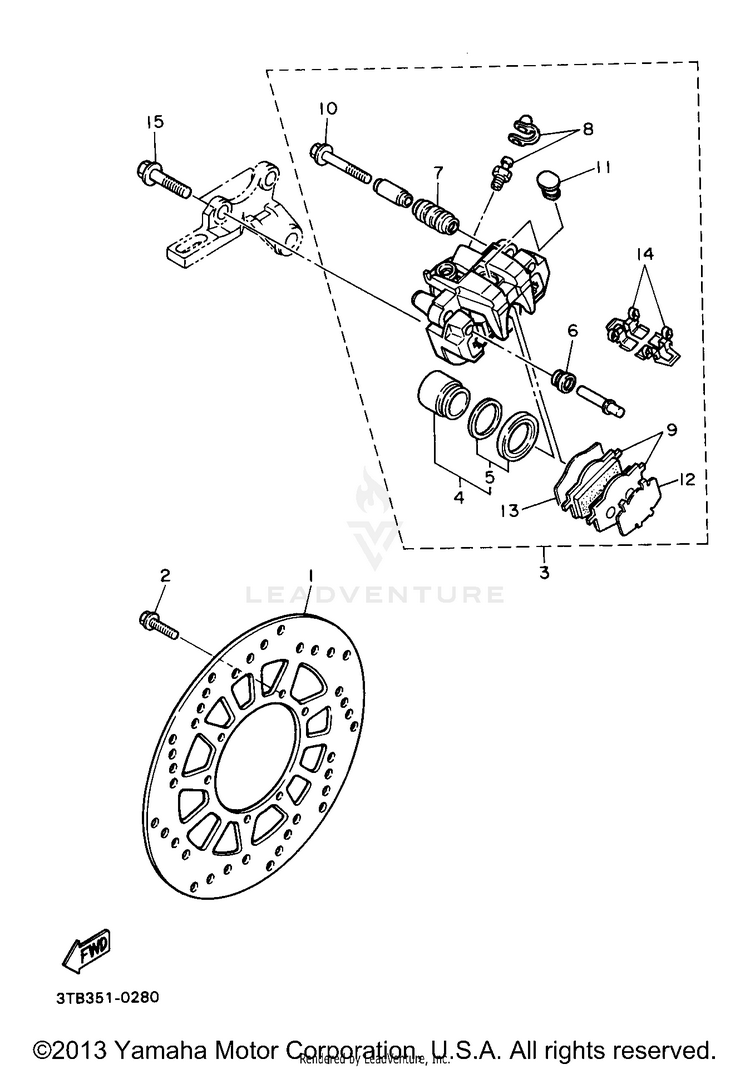

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12KF-25831-50-00DISC, BRAKE$195.99$155.28Usually ships in 7-10 business days
290109-06757-00BOLT$1.40$1.26Not Shipping
33TB-2580W-10-00

(replaces part #
3TB-2580W-00-00)

CALIPER ASSY REAR2$381.99$297.95Usually ships in 7-10 business days
42KF-W0057-00-00PISTON ASSEMBLY, CALIPER$41.99$34.43Usually ships in 7-10 business days
534X-W0047-00-00CALIPER SEAL KIT$49.99$38.994 In-Stock
65R2-25937-00-00BOOT 2$41.99$32.752 In-Stock
734X-25937-00-00BOOT 2$34.99$28.69Usually ships in 7-10 business days
815B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
934X-W0046-02-00

(replaces part #
34X-W0046-01-00)

BRAKE PAD KIT$50.99$39.77Usually ships in 7-10 business days
105KN-25926-01-00

(replaces part #
2GV-25926-00-00)

BOLT$9.49$8.545 In-Stock
1134X-25845-00-00CAP, INDICATOR$17.99$14.031 In-Stock
122KF-25827-00-00SHIM, CALIPER$31.99$26.23Not Shipping
132KF-25828-00-00SHIM, CALIPER$17.49$14.34Not Shipping
144MA-25919-00-00

(replaces part #
2KF-25919-10-00)

SUPPORT,PAD$38.99$31.97Usually ships in 7-10 business days
1590105-10638-00

(replaces part #
90105-10308-00)

BOLT, WASHER BASED$8.49$6.6210+ In-Stock
