1990 Yamaha XT600 Fuel Tank California Model Only OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

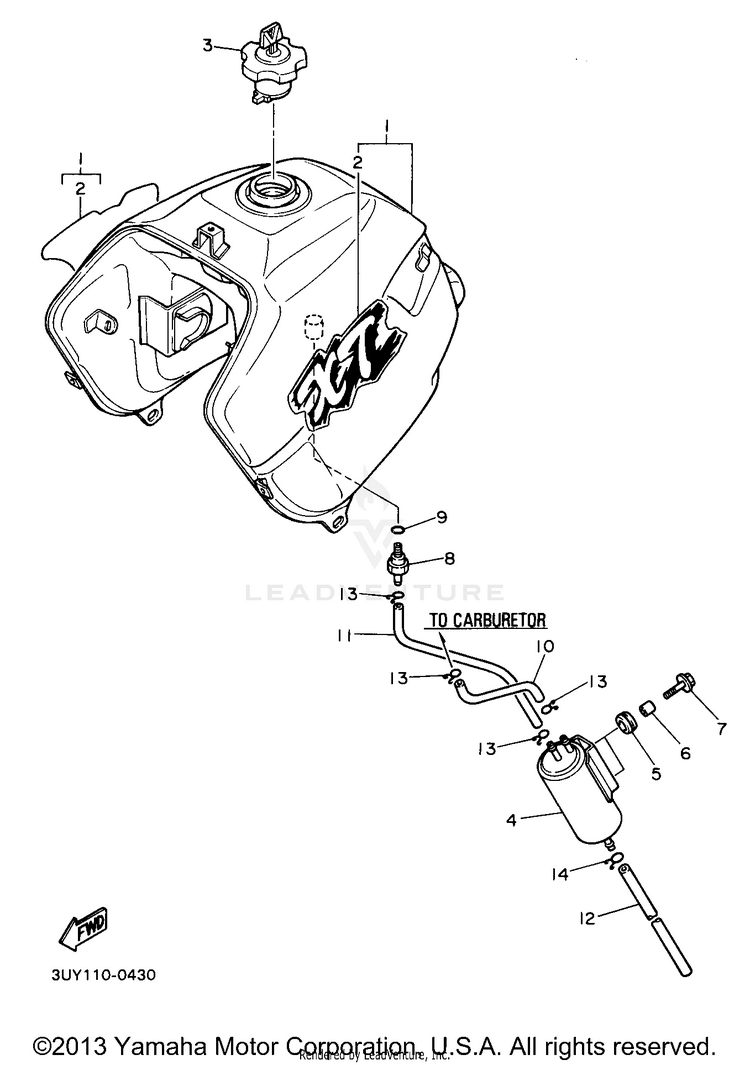

FUEL TANK CALIFORNIA MODEL ONLY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UY-24110-00-01FUEL TANK COMP | UR STRONG BLUE$609.99$485.44Usually ships in 7-10 business days
23TB-24240-01-00GRAPHIC SET | UR FOR SB$99.99$77.99Usually ships in 7-10 business days
351K-24602-10-00

(replaces part #
51K-24602-00-00)

CAP ASSY$131.99$102.95Usually ships in 7-10 business days
447M-24170-00-00CANISTER ASSEMBLY$228.99$179.79Usually ships in 7-10 business days
590480-12529-00

(replaces part #
90480-12188-00)

GROMMET$3.05$2.742 In-Stock
690387-060G7-00COLLAR$9.49$8.547 In-Stock
790119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
820K-24180-00-00ROLL OVER VALVE ASSY$143.99$112.31Usually ships in 7-10 business days
993210-11453-00

(replaces part #
93210-10166-00)

O-RING$8.49$6.623 In-Stock
1090445-102F4-00HOSE$2.77$2.49Usually ships in 7-10 business days
1190445-10020-00

(replaces part #
90445-10344-00)

HOSE$9.49$7.402 In-Stock
1291A20-07039-00

(replaces part #
90446-11268-00)

TUBE, FLEXIBLE VINYL (91A-20070$6.49$5.84Usually ships in 7-10 business days
1390467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
1490467-11106-00

(replaces part #
90467-11102-00)

CLIP$4.05$3.4810+ In-Stock
