1990 Yamaha XT600 Exhaust OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

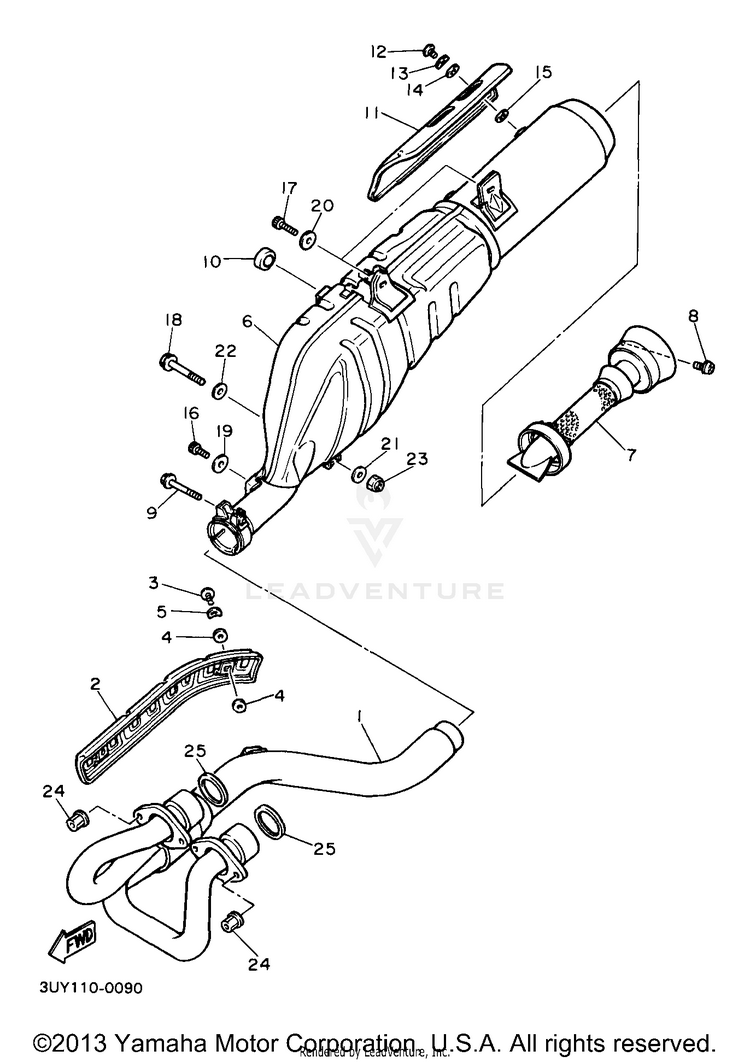

EXHAUST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
134K-14611-01-00PIPE, EXHAUST 1$297.99$247.67Usually ships in 7-10 business days
254G-14628-01-00PROTECTOR, EXHAUST PIPE$41.99$34.43Not Shipping
390164-06017-00SCREW, TAPPING$9.49$8.546 In-Stock
430X-14766-00-00WASHER, PROTECTOR$2.20$1.98Not Shipping
590206-06090-00

(replaces part #
90206-06088-00)

WASHER, WAVE$9.49$7.4010+ In-Stock
63UY-14711-01-00

(replaces part #
3UY-14711-00-00)

MUFFLER 1$631.99$492.95Usually ships in 7-10 business days
734K-14752-00-00PIPE, OUTLET$141.99$110.75Not Shipping
898507-06010-00

(replaces part #
97606-06110-00)

SCREW, PAN HEAD$3.85$3.318 In-Stock
995817-08045-00

(replaces part #
95816-08045-00)

BOLT, FLANGE$3.69$3.3210+ In-Stock
1022W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
113TB-14728-00-00PROTECTOR, MUFFLER 2$130.99$102.17Usually ships in 7-10 business days
1298980-06010-00SCREW, BIND$10.49$8.6310+ In-Stock
1390206-06090-00

(replaces part #
90206-06088-00)

WASHER, WAVE$9.49$7.4010+ In-Stock
1490202-05187-00

(replaces part #
90202-06010-00)

WASHER, PLATE$1.70$1.4610+ In-Stock
1530X-14766-00-00WASHER, PROTECTOR$2.20$1.98Not Shipping
1690109-085E2-00BOLT$8.49$6.6210+ In-Stock
1790105-10186-00BOLT, WASHER BASED$3.90$3.51Usually ships in 7-10 business days
1890105-10169-00

(replaces part #
90105-10232-00)

BOLT, FLANGE$12.49$10.24Usually ships in 7-10 business days
1990201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
2090201-102J5-00WASHER, PLATE$17.49$14.34Usually ships in 7-10 business days
2190201-101J1-00WASHER, PLATE$9.49$7.4010+ In-Stock
2290201-10144-00WASHER, PLATE$3.30$2.97Not Shipping
2395607-10200-00

(replaces part #
95611-10200-00)

NUT, U FLANGE$4.15$3.5710+ In-Stock
2490179-06500-00NUT$8.49$6.6210+ In-Stock
253YF-14613-01-00

(replaces part #
5Y1-14613-00-00)

GASKET, EXHAUST PIPE$14.49$11.3010+ In-Stock
