1990 Yamaha XT600 Headlight OEM Parts Diagram

Submodel XT600EAC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

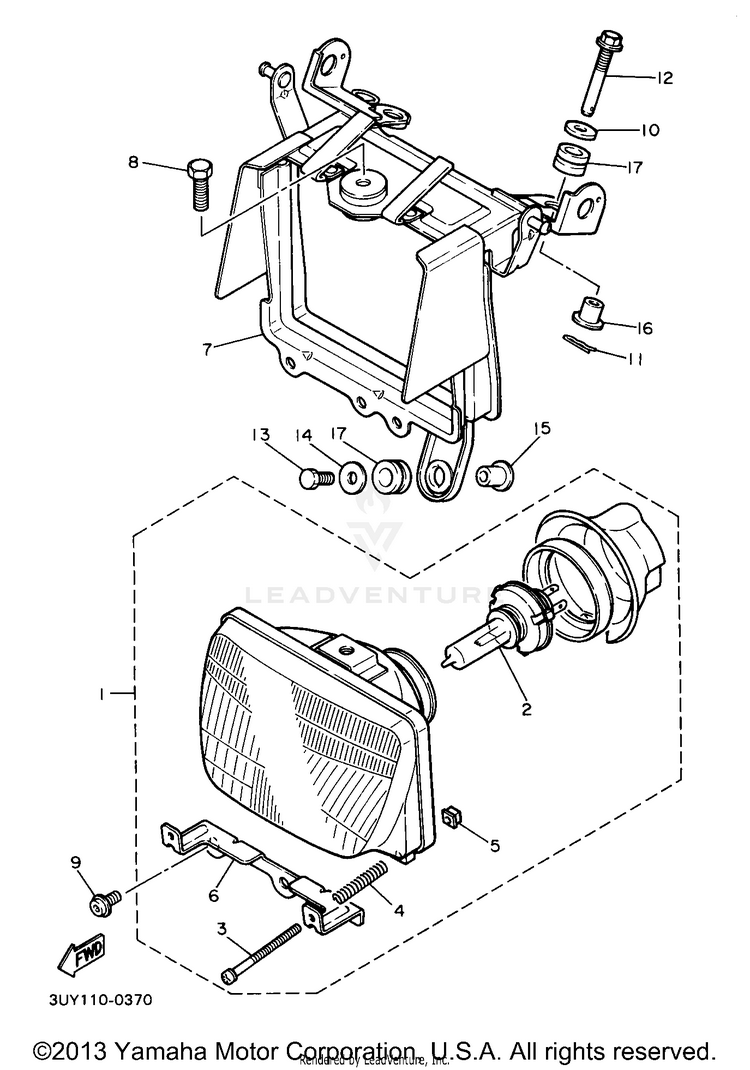

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UY-84320-00-00LENS ASSEMBLY$263.99$205.91Usually ships in 7-10 business days
28V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | HALOGEN$75.99$60.93Usually ships in 7-10 business days
33TB-84325-00-00SCREW, RIM FITTING$5.49$4.94Usually ships in 7-10 business days
4341-84332-60-00SPRING, SCREW$10.99$8.576 In-Stock
5198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
63TB-8431R-00-00STAY, SETTING$19.49$15.98Usually ships in 7-10 business days
73TB-84311-00-00BODY, HEADLIGHT$161.99$126.35Usually ships in 7-10 business days
83TB-84372-01-00BOLT, LAMP STAY$2.75$2.48Usually ships in 7-10 business days
93TB-84329-00-00BOLT, WING 1$2.25$2.02Usually ships in 7-10 business days
1090202-06013-00WASHER, PLATE$1.95$1.76Usually ships in 7-10 business days
1190468-12120-00CLIP$9.49$8.54Usually ships in 7-10 business days
123TB-84137-00-00BOLT, SPECIAL$21.99$18.03Usually ships in 7-10 business days
1397017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
1490201-06057-00

(replaces part #
90201-06059-00)

WASHER, PLATE$6.49$5.067 In-Stock
1590387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
1690387-07391-00COLLAR$10.49$8.1810+ In-Stock
1790480-14023-00GROMMET$8.49$6.6210+ In-Stock
