2000 Yamaha Virago XV535 Crankshaft Piston OEM Parts Diagram

Submodel VIRAGO 535 - XV535MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

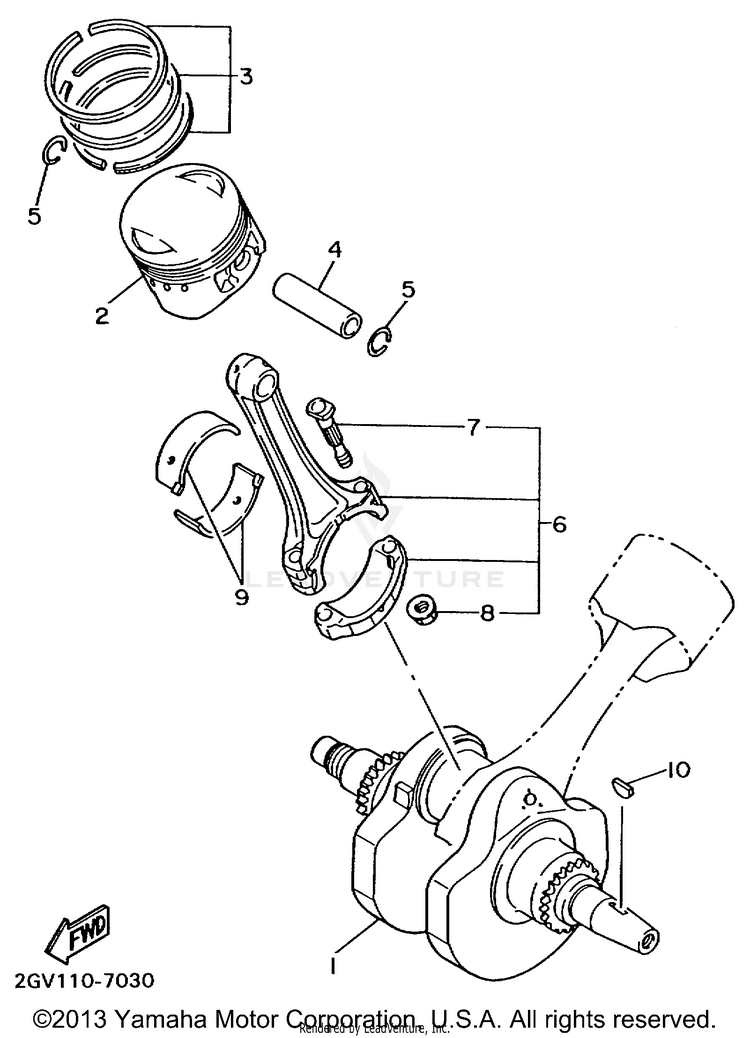

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-22U-11656-00-00PLANE BEARING, CONNECTING ROD | UR BLUE$9.49$8.54Usually ships in 7-10 business days
-22U-11656-10-00PLANE BEARING, CONNECTING ROD | UR BLACK$9.49$8.54Usually ships in 7-10 business days
-2GV-11631-00-C0PISTON (STD)$103.99$81.11Usually ships in 7-10 business days
-2GV-11636-00-00PISTON (0.50MM O/S) | AP$95.99$74.87Usually ships in 7-10 business days
-2GV-11610-20-00PISTON RING SET (0.50MM O/S) | AP$59.99$46.79Usually ships in 7-10 business days
-22U-11656-30-00PLANE BEARING, CONNECTING ROD | UR GREEN$9.49$8.54Usually ships in 7-10 business days
-2GV-11610-40-00PISTON RING SET (1.00MM O/S) | AP$52.99$41.33Usually ships in 7-10 business days
122U-11411-00-00CRANKSHAFT$664.99$527.18Usually ships in 7-10 business days
22GV-11638-00-00PISTON (1.00MM O/S) | AP$95.99$74.87Usually ships in 7-10 business days
32GV-11610-00-00PISTON RING SET (STD)$62.99$49.13Usually ships in 7-10 business days
422U-11633-01-00PIN, PISTON$17.49$14.34Usually ships in 7-10 business days
593450-19052-00CIRCLIP, INNER$7.99$6.2310+ In-Stock
622U-11650-00-00CONNECTING ROD ASSEMBLY$217.99$170.03Usually ships in 7-10 business days
722U-11654-00-00BOLT, CONNECTING ROD$6.49$5.84Usually ships in 7-10 business days
890179-08327-00NUT$10.49$8.60Usually ships in 7-10 business days
922U-11656-20-00PLANE BEARING, CONNECTING ROD | UR BROWN$15.49$12.70Usually ships in 7-10 business days
1090280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
