2000 Yamaha Virago XV535 Seat OEM Parts Diagram

Submodel VIRAGO 535 - XV535MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

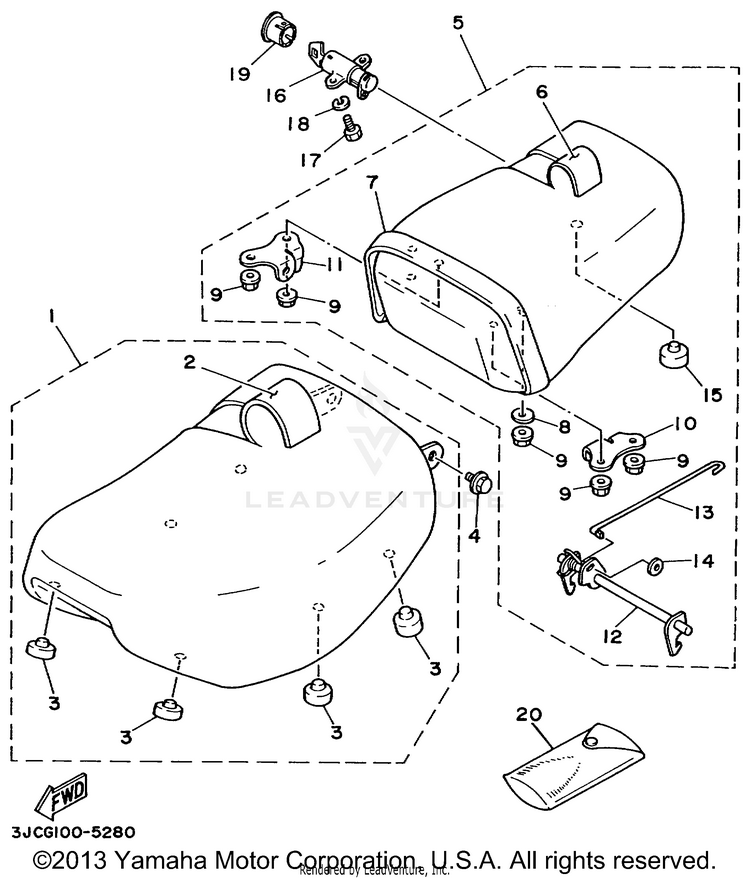

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JB-24710-00-00SINGLE SEAT ASSEMBLY$265.66$207.21Usually ships in 7-10 business days
23JB-24711-00-00COVER, SINGLE SEAT$135.99$106.07Usually ships in 7-10 business days
318A-24724-00-00DAMPER, SEAT$9.49$8.54Usually ships in 7-10 business days
495817-06012-00

(replaces part #
95807-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
53JB-24750-00-00TANDEM SEAT ASSEMBLY$216.99$169.25Usually ships in 7-10 business days
63JB-24751-00-00COVER, TANDEM SEAT$111.99$87.35Usually ships in 7-10 business days
73JB-24734-00-00BAND, SEAT$109.99$85.79Usually ships in 7-10 business days
890201-06380-00

(replaces part #
90201-06765-00)

WASHER, PLATE-$0.7110+ In-Stock
995707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
103JB-24718-00-00BRACKET, SEAT$9.99$8.99Usually ships in 7-10 business days
113JB-24728-00-00BRACKET, SEAT$11.49$9.42Usually ships in 7-10 business days
123JB-24776-00-00LEVER, SEAT$45.99$37.71Usually ships in 7-10 business days
133JB-2478F-00-00ROD, CONNECTING$8.99$8.09Usually ships in 7-10 business days
1492907-03200-00WASHER$6.49$5.84Usually ships in 7-10 business days
1518A-24724-00-00DAMPER, SEAT$9.49$8.54Usually ships in 7-10 business days
1647X-24705-00-00SEAT LOCK ASSEMBLY$87.99$68.63Usually ships in 7-10 business days
1797017-06014-00

(replaces part #
97007-06014-00)

BOLT$9.49$7.4010+ In-Stock
1892907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
1951Y-24796-00-00COVER$23.99$19.67Usually ships in 7-10 business days
202GV-28100-00-00TOOL KIT$99.99$77.99Usually ships in 7-10 business days
