2000 Yamaha Virago XV535 Intake OEM Parts Diagram

Submodel VIRAGO 535 - XV535MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

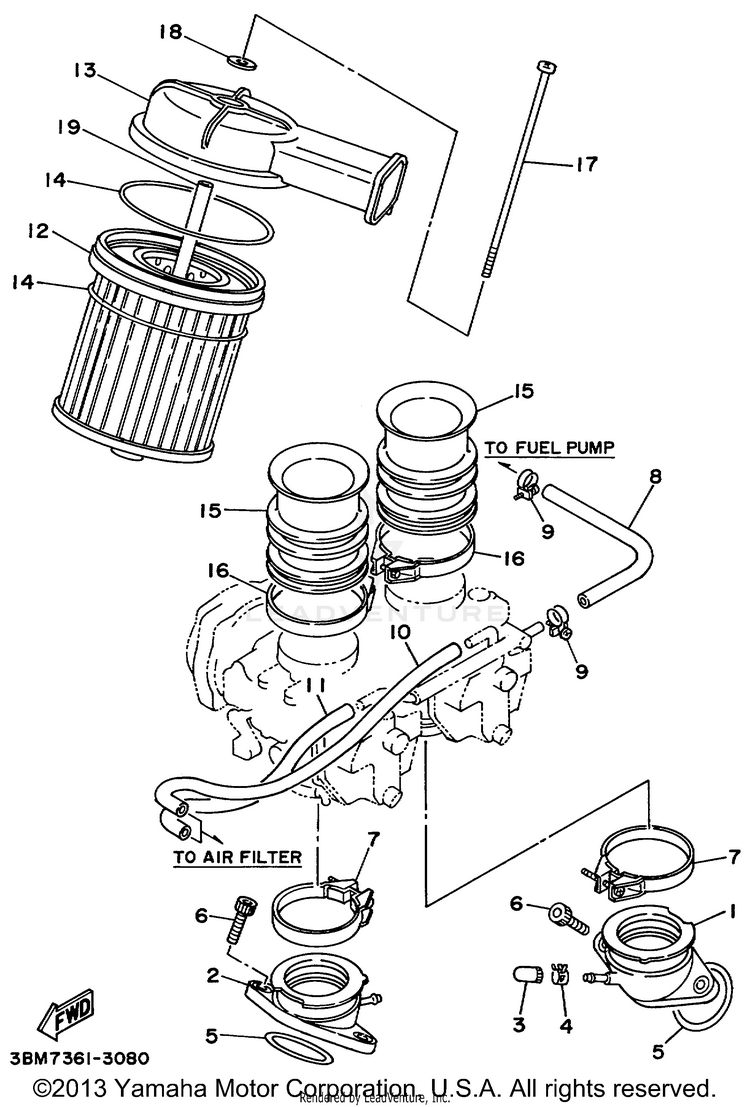

INTAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GV-13586-02-00

(replaces part #
2GV-13586-01-00)

JOINT, CARBURETOR 1$102.99$80.33Usually ships in 7-10 business days
22GV-13596-01-00

(replaces part #
2GV-13596-00-00)

JOINT, CARBURETOR 2$102.99$80.33Usually ships in 7-10 business days
316G-13569-00-00PLUG, BLIND$8.49$6.624 In-Stock
490467-10039-00

(replaces part #
90467-10035-00)

CLIP$10.49$8.188 In-Stock
593210-36769-00O-RING$12.49$9.7410+ In-Stock
691317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
790450-50001-00

(replaces part #
90460-52210-00)

HOSE CLAMP ASSY$20.99$16.37Not Shipping
890445-112F1-00

(replaces part #
90445-111F3-00)

HOSE$22.99$18.85Not Shipping
990450-12002-00

(replaces part #
90460-12256-00)

CLAMP,HOSE$10.99$9.01Usually ships in 7-10 business days
104BH-14987-00-00

(replaces part #
2GV-14197-00-00)

HOSE$12.99$10.65Not Shipping
114BH-14987-00-00

(replaces part #
2GV-14987-00-00)

HOSE$12.99$10.65Not Shipping
122GV-14451-00-00ELEMENT, AIR CLEANER$56.99$44.45Usually ships in 7-10 business days
132GV-14412-00-00CAP, CLEANER CASE 1$35.99$29.51Usually ships in 7-10 business days
1451Y-14462-00-00

(replaces part #
2GV-14452-00-00)

SEAL$19.99$15.597 In-Stock
1522U-14469-01-00

(replaces part #
22U-14469-00-00)

FUNNEL, AIR$35.99$29.51Usually ships in 7-10 business days
1690450-58002-00

(replaces part #
90460-58124-00)

HOSE CLAMP ASSY$18.49$14.4210+ In-Stock
1798517-06160-00SCREW, PAN HEAD$11.49$9.42Usually ships in 7-10 business days
1890201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1990387-062T3-00COLLAR$3.70$3.33Usually ships in 7-10 business days
