2000 Yamaha Virago XV535 Taillight OEM Parts Diagram

Submodel VIRAGO 535 - XV535MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

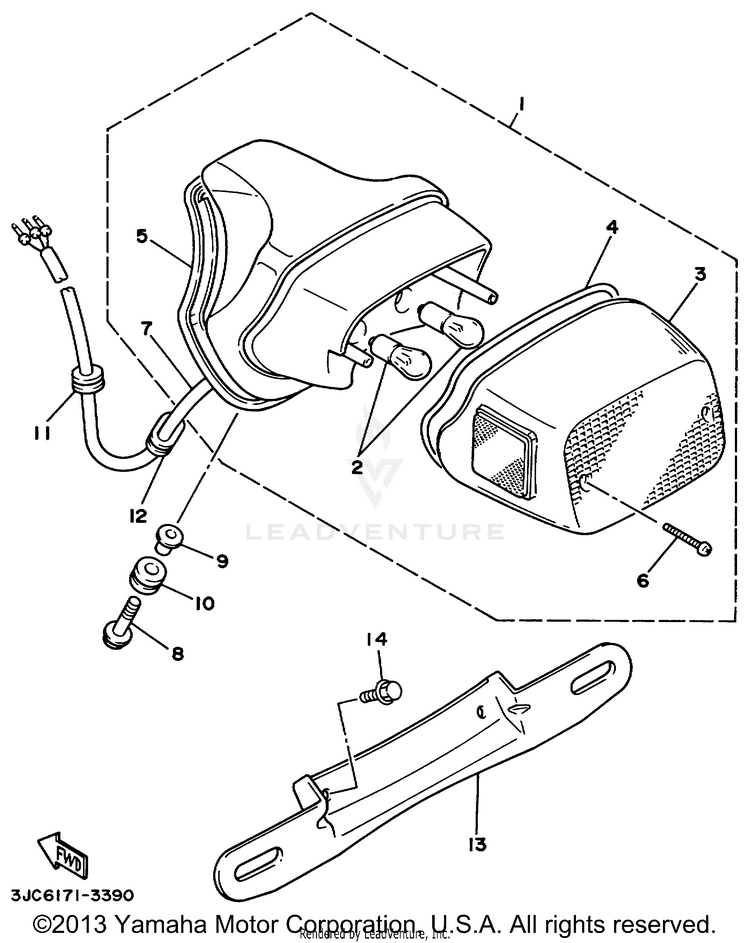

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GV-84700-A0-00TAILLIGHT ASSEMBLY$210.99$172.80Usually ships in 7-10 business days
2256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
342X-84721-61-00LENS, TAILLIGHT$76.99$65.66Not Shipping
41VJ-14462-00-00

(replaces part #
42X-84723-01-00)

SEAL$19.99$15.5910+ In-Stock
51RM-84704-00-00GASKET, TAILLIGHT$50.99$39.77Usually ships in 7-10 business days
697707-40625-00

(replaces part #
97701-40625-00)

SCREW, TAPPING$9.49$8.54Usually ships in 7-10 business days
7461-84517-00-00

(replaces part #
2GV-84717-00-00)

CORD,TAILLIGHT$14.99$12.29Usually ships in 7-10 business days
890119-06172-00

(replaces part #
90119-06097-00)

BOLT, WITH WASHER$11.49$8.9610+ In-Stock
990387-06026-00COLLAR$9.49$7.409 In-Stock
1090480-14229-00

(replaces part #
90480-15316-00)

GROMMET$9.49$7.4010+ In-Stock
1190480-16501-00GROMMET$6.49$5.84Usually ships in 7-10 business days
1290480-15061-00

(replaces part #
90480-01502-00)

GROMMET$9.49$8.54Usually ships in 7-10 business days
131RM-84751-00-00BRACKET, LICENSE$45.99$37.71Usually ships in 7-10 business days
1495817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
