2000 Yamaha Virago XV535 Meter OEM Parts Diagram

Submodel VIRAGO 535 - XV535MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

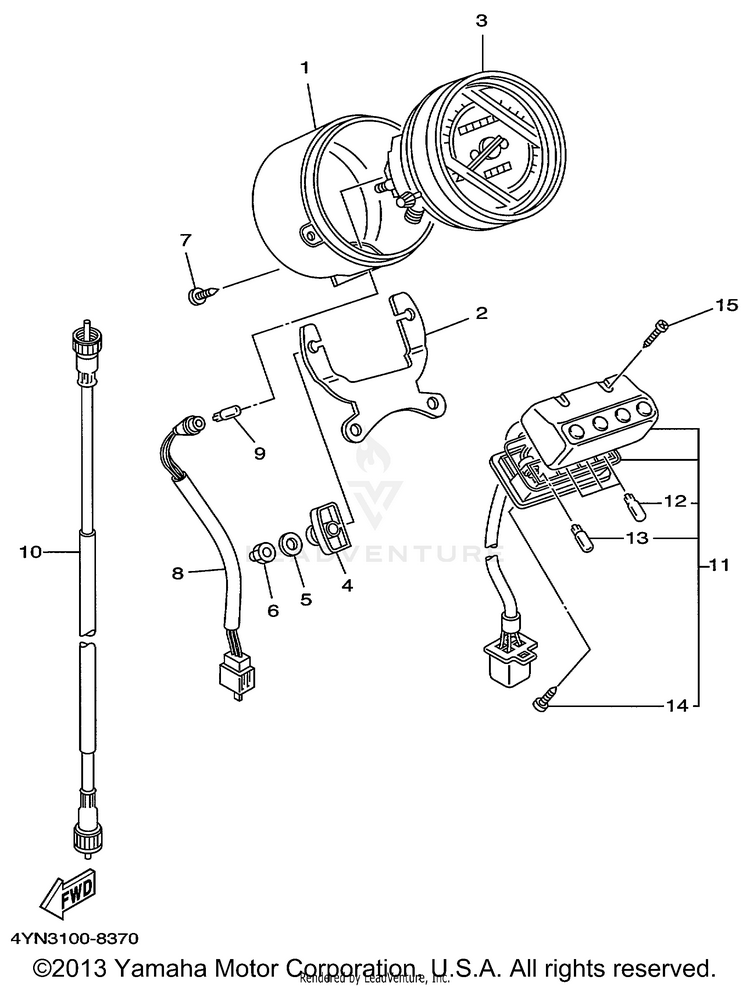

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-83507-11-00

(replaces part #
1FK-83507-10-00)

CASE COMP, UNDER$45.99$37.71Usually ships in 7-10 business days
22GV-83519-00-00

(replaces part #
2UJ-83519-00-00)

BRACKET, METER$23.99$19.67Usually ships in 7-10 business days
33BT-8351A-20-00

(replaces part #
3BT-8351A-10-00)

METER ASSY$205.99$160.67Usually ships in 7-10 business days
41FG-83523-00-00

(replaces part #
2UJ-83523-00-00)

DAMPER$10.99$9.01Usually ships in 7-10 business days
592907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
695317-05600-00

(replaces part #
95307-05600-00)

NUT$2.50$2.153 In-Stock
790164-04009-00SCREW, TAPPING$0.50$0.45Usually ships in 7-10 business days
82GV-83509-00-00

(replaces part #
2UJ-83509-00-00)

SOCKET CORD ASSEMBLY$63.99$49.91Usually ships in 7-10 business days
942X-83517-00-00

(replaces part #
2UJ-83517-00-00)

BULB (14V-3.4W)$9.49$8.5410+ In-Stock
1016M-83550-01-00

(replaces part #
3Y0-83550-01-00)

SPDMTR, CABLE$45.99$37.71Usually ships in 7-10 business days
115AJ-83530-00-00

(replaces part #
2UJ-83530-00-00)

PILOT LIGHT ASSY$65.99$56.20Usually ships in 7-10 business days
1242X-83517-00-00BULB (14V-3.4W)$9.49$8.5410+ In-Stock
133FV-83517-00-00

(replaces part #
2GV-83517-00-00)

BULB (12V-1.7W)$9.49$7.4010+ In-Stock
144AS-83616-10-00SCREW, TAPPING$2.90$2.61Usually ships in 7-10 business days
1598517-04025-00

(replaces part #
98507-04025-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
