2000 Yamaha Virago XV535 Valve OEM Parts Diagram

Submodel VIRAGO 535 - XV535MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

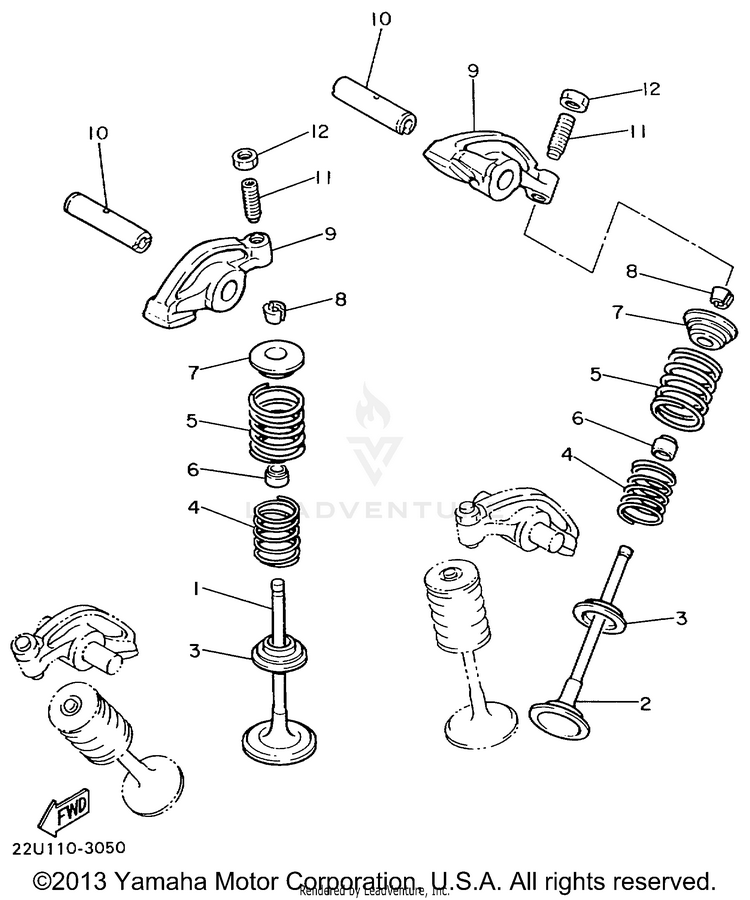

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122U-12111-00-00VALVE, INTAKE$39.99$32.79Usually ships in 7-10 business days
222U-12121-01-00VALVE, EXHAUST$68.99$53.81Usually ships in 7-10 business days
33Y1-12116-00-00SEAT, VALVE SPRING$17.99$14.037 In-Stock
422U-12113-00-00SPRING, VALVE INNER$30.99$24.174 In-Stock
522U-12114-00-00SPRING, VALVE OUTER$13.99$11.47Usually ships in 7-10 business days
61J7-12119-01-00SEAL, VALVE STEM$22.99$17.9310+ In-Stock
73Y1-12117-01-00RETAINER, VALVE SPRING$18.99$14.816 In-Stock
81J7-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
922U-12151-00-00ARM, VALVE ROCKER$54.99$42.89Usually ships in 7-10 business days
1022U-12156-02-00

(replaces part #
22U-12156-01-00)

SHAFT, ROCKER 2$19.49$15.98Usually ships in 7-10 business days
1122U-12159-00-00SCREW, VALVE ADJUSTING$10.99$9.01Usually ships in 7-10 business days
1290170-06128-00NUT$9.49$7.404 In-Stock
