2005 Yamaha V-Max Generator OEM Parts Diagram

Submodel V-MAX - VMX12TC - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

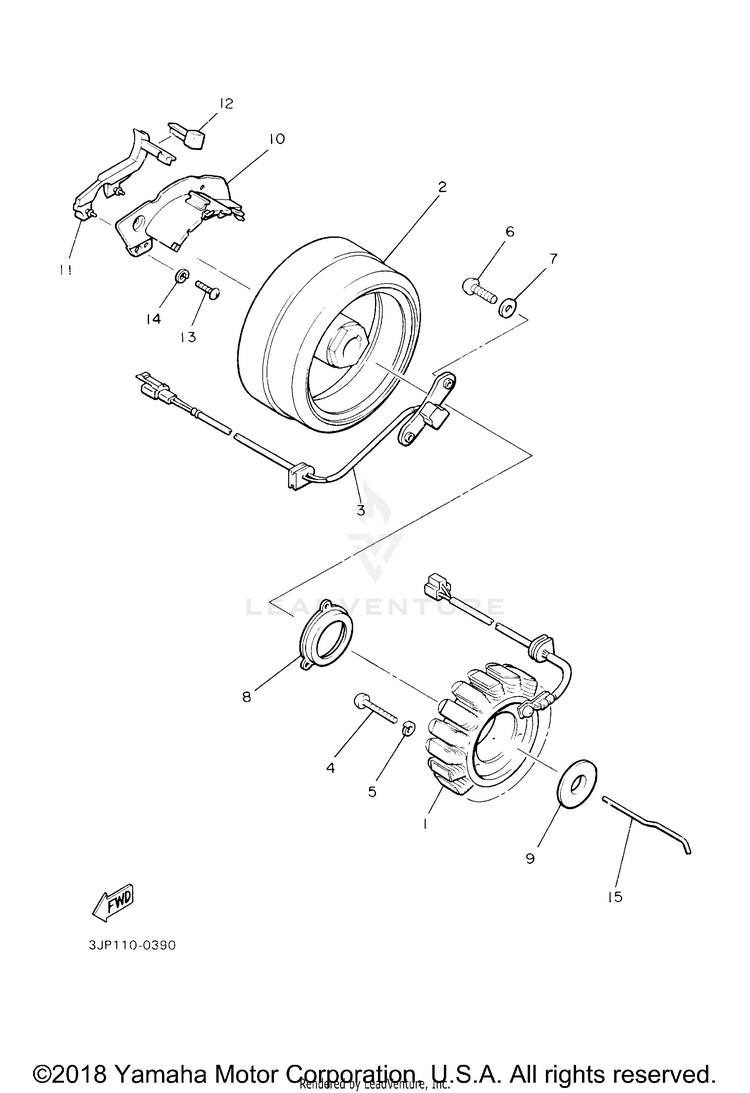

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13UF-81410-10-00STATOR ASSY$467.99$417.77Usually ships in 7-10 business days
23UF-81450-10-00ROTOR ASSY$1,289.99$1,127.45Usually ships in 7-10 business days
33UF-81670-00-00PICK-UP ASSY$657.99$520.65Usually ships in 7-10 business days
498507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
592907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
698507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
790201-06045-00

(replaces part #
90201-06674-00)

WASHER, PLATE$9.49$7.409 In-Stock
859J-15113-00-00PLATE$6.49$5.84Usually ships in 7-10 business days
959J-15191-00-00PLATE$4.90$4.41Usually ships in 7-10 business days
101FK-15358-00-00SEPARATOR, OIL$44.99$36.89Usually ships in 7-10 business days
111FK-15379-00-00SEAL, CRANKCASE$17.49$14.34Usually ships in 7-10 business days
121FK-15494-00-00SEAL, PROTECTOR$12.49$10.24Usually ships in 7-10 business days
1398517-06012-00

(replaces part #
98507-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
1492907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
1559J-11455-00-00SHAFT 1$12.99$10.65Usually ships in 7-10 business days
