REAR ARM

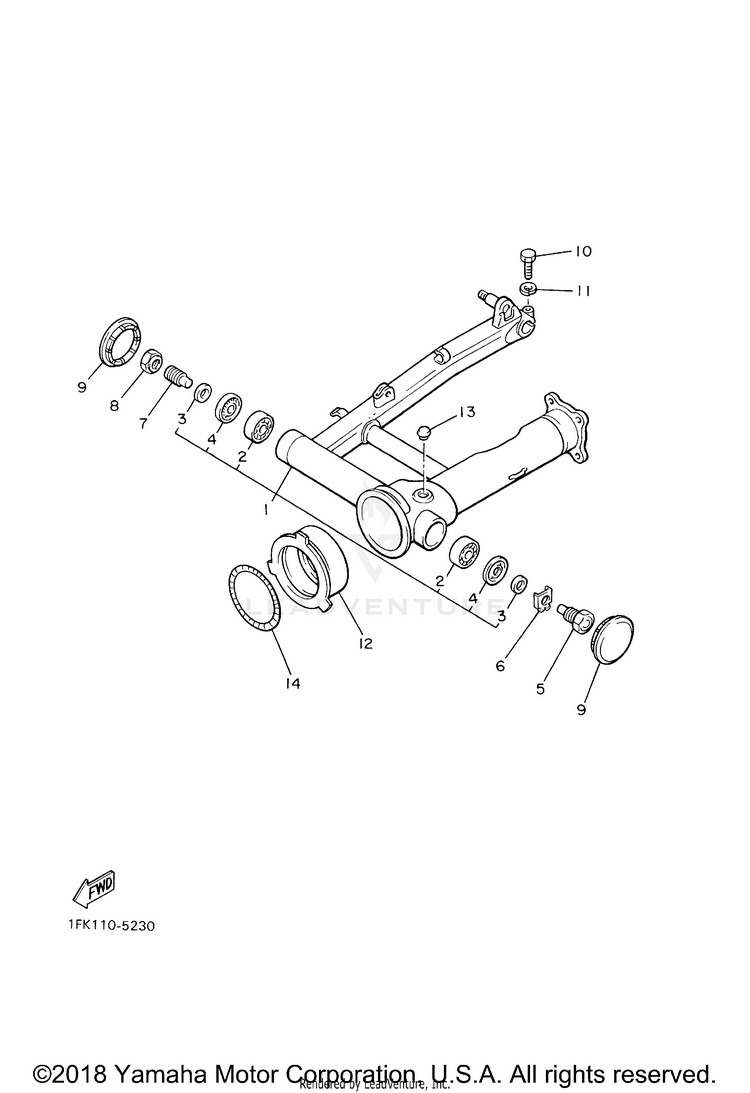

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12EN-W2211-00-35REAR ARM COMP. | SL$737.99$575.63Usually ships in 7-10 business days
293332-00010-00BEARING$51.99$40.554 In-Stock
390387-17011-00

(replaces part #
90387-17543-00)

COLLAR$17.49$13.644 In-Stock
493102-25017-00OIL SEAL$6.49$5.064 In-Stock
542X-22141-00-00SHAFT, PIVOT$22.99$18.85Usually ships in 7-10 business days
690215-22238-00WASHER, LOCK$12.49$10.24Usually ships in 7-10 business days
715B-22141-00-00

(replaces part #
1J7-22141-00-00)

SHAFT, PIVOT$18.49$15.16Usually ships in 7-10 business days
81J7-22143-00-00NUT$25.99$20.276 In-Stock
92H7-2219X-00-00COVER$38.99$31.97Usually ships in 7-10 business days
1097024-08035-00

(replaces part #
97004-08035-00)

BOLT$8.49$7.64Usually ships in 7-10 business days
1192990-08600-00

(replaces part #
92904-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1226H-22189-00-00BOOT, RUBBER$50.99$39.77Usually ships in 7-10 business days
1390338-20113-00PLUG$11.49$9.42Usually ships in 7-10 business days
1490506-07136-00SPRING, TENSION$13.49$11.06Usually ships in 7-10 business days
