TAILLIGHT

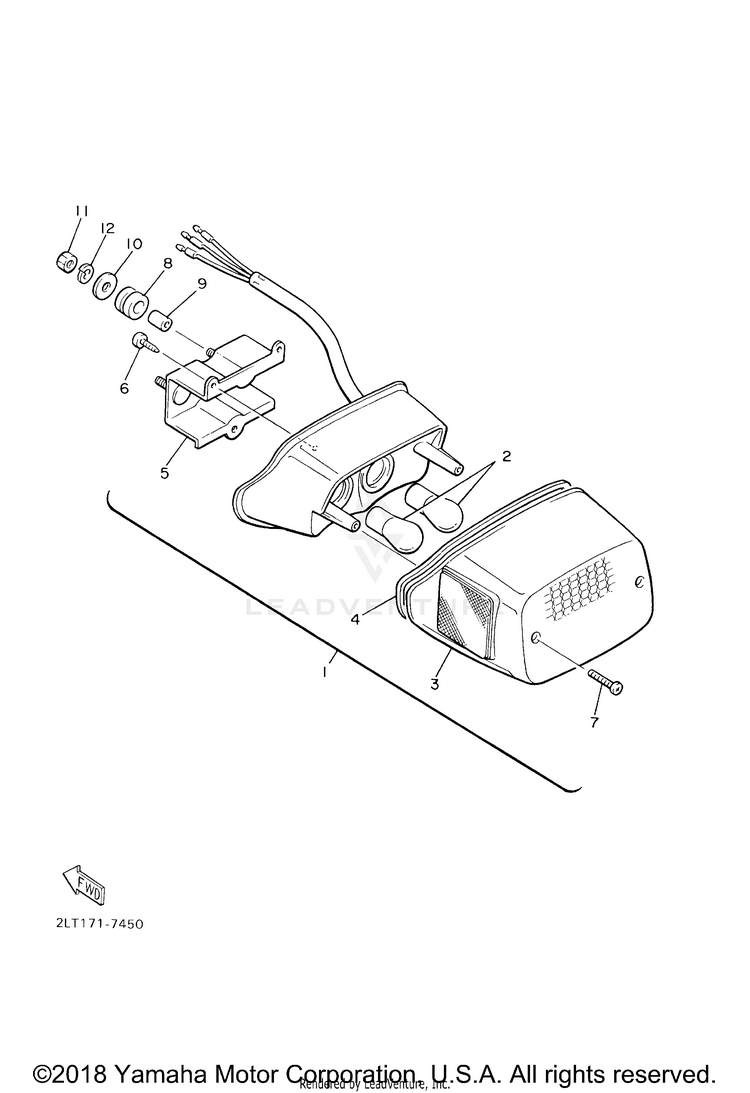

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-84700-60-00TAILLIGHT ASSY$174.99$145.52Usually ships in 7-10 business days
2256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
342X-84721-61-00

(replaces part #
42X-84721-60-00)

LENS, TAILLIGHT$76.99$65.66Not Shipping
41VJ-14462-00-00

(replaces part #
42X-84723-01-00)

SEAL$19.99$15.5910+ In-Stock
51FK-84702-00-00BRACKET, TAILLIGHT$13.49$11.06Usually ships in 7-10 business days
697707-40616-00SCREW,TAPPING(4HP)$1.85$1.598 In-Stock
797707-40625-00SCREW, TAPPING$9.49$8.54Usually ships in 7-10 business days
890480-14229-00

(replaces part #
90480-15316-00)

GROMMET$9.49$7.4010+ In-Stock
990387-06026-00COLLAR$9.49$7.409 In-Stock
1090201-06380-00WASHER, PLATE-$0.7110+ In-Stock
1195317-06600-00

(replaces part #
95307-06600-00)

NUT$3.85$3.3110+ In-Stock
1292907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
