2005 Yamaha V-Max Starting Motor OEM Parts Diagram

Submodel V-MAX - VMX12TC - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTING MOTOR

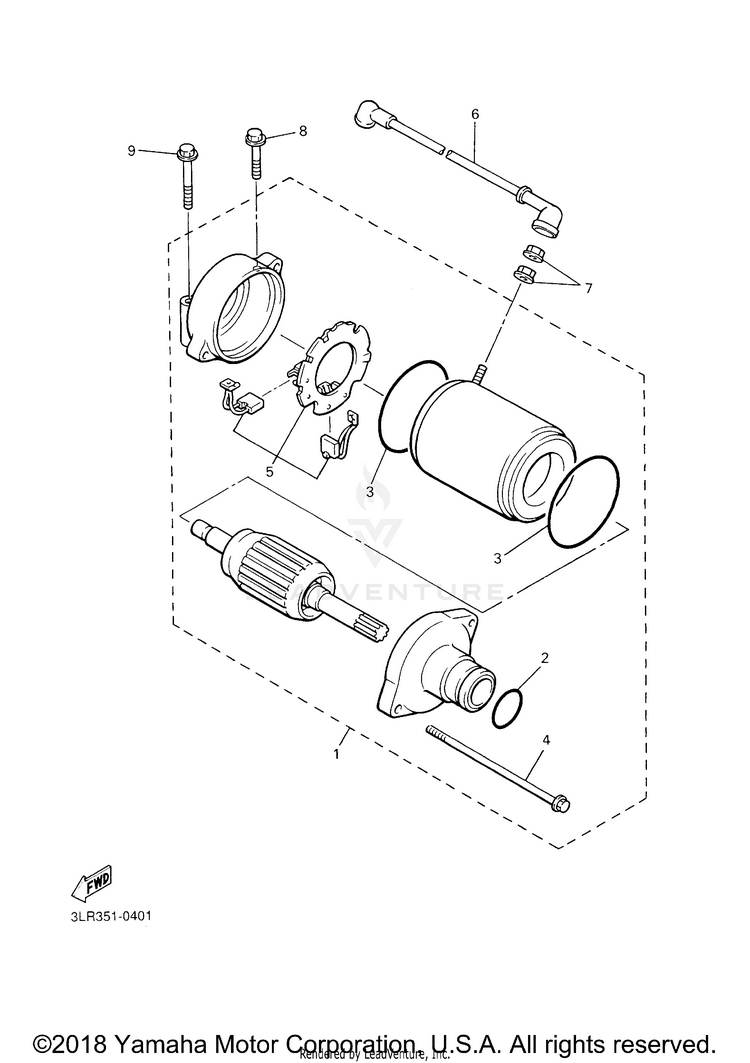

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-81890-00-00MOTOR ASSY$461.99$383.56Usually ships in 7-10 business days
293210-24235-00

(replaces part #
1FK-81847-00-00)

O-RING$8.49$7.078 In-Stock
335C-81844-00-00

(replaces part #
11H-81844-00-00)

GASKET$53.99$42.11Usually ships in 7-10 business days
43AJ-81826-00-00

(replaces part #
1FK-81826-10-00)

BOLT$28.99$23.77Usually ships in 7-10 business days
53AJ-81801-00-00BRUSH SET$126.99$99.05Usually ships in 7-10 business days
61FK-81815-00-00CORD, STARTER MOTOR$63.99$49.91Usually ships in 7-10 business days
74XV-8182A-00-00NUT$8.49$6.626 In-Stock
895817-06025-00

(replaces part #
95827-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
995817-06055-00

(replaces part #
95827-06055-00)

BOLT, FLANGE$2.35$2.12Usually ships in 7-10 business days
