2005 Yamaha V-Max Shift Shaft OEM Parts Diagram

Submodel V-MAX - VMX12TC - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

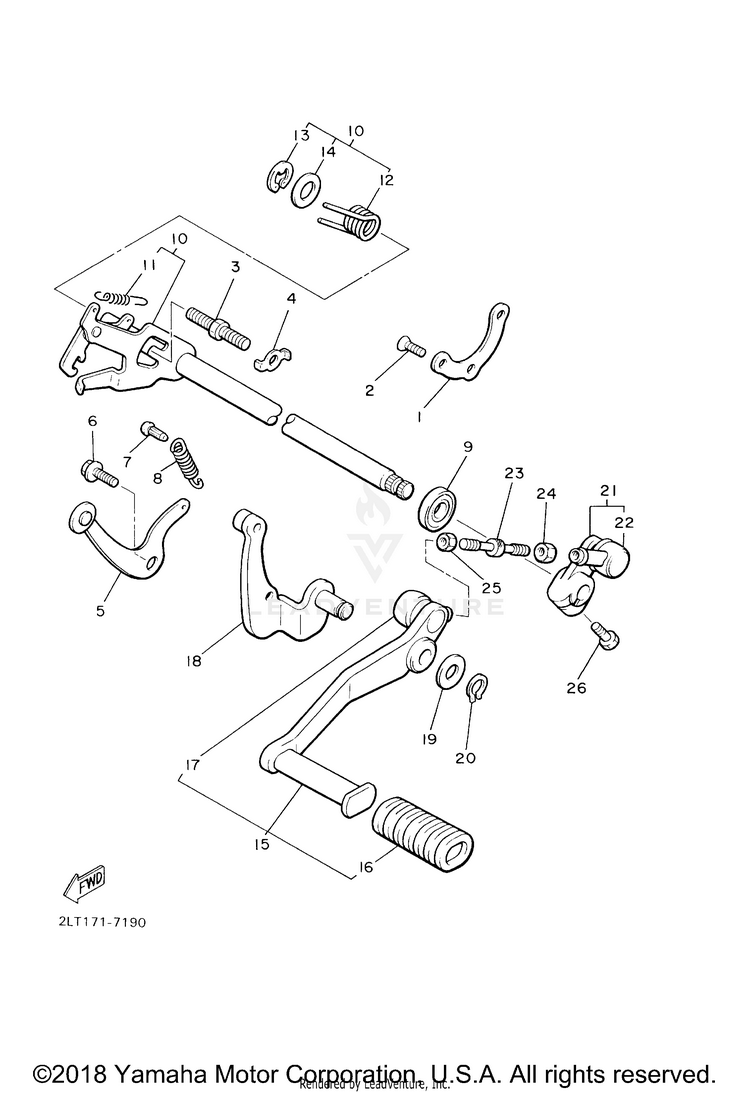

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
126H-18536-00-00STOPPER, SHIFT BAR$11.49$9.42Usually ships in 7-10 business days
298707-06016-00

(replaces part #
90151-06041-00)

SCREW, FLAT HEAD$9.49$7.401 In-Stock
390109-08441-00BOLT$9.49$8.54Usually ships in 7-10 business days
490215-08115-00WASHER, LOCK$8.49$7.64Usually ships in 7-10 business days
526H-18140-02-00STOPPER LEVER ASSY$19.99$16.39Usually ships in 7-10 business days
690109-06036-00

(replaces part #
90109-063F8-00)

BOLT$10.49$8.187 In-Stock
7132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
890506-13312-00SPRING, TENSION$1.75$1.58Usually ships in 7-10 business days
993102-12106-00OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
101FK-18101-01-00SHIFT SHAFT ASSY$78.99$61.61Usually ships in 7-10 business days
1190506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
1290508-32588-00SPRING, TORSION$6.49$5.84Usually ships in 7-10 business days
1399006-10600-00

(replaces part #
99001-10600-00)

CIRCLIP$10.49$8.1810+ In-Stock
1490201-127E1-00WASHER, PLATE$4.65$4.0010+ In-Stock
151FK-18110-00-00SHIFT PEDAL ASSY$164.99$128.69Usually ships in 7-10 business days
1622N-18113-00-00COVER, SHIFT PEDAL$8.49$7.64Usually ships in 7-10 business days
172H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
181FK-18128-00-00BRACKET$112.99$88.13Usually ships in 7-10 business days
1990201-124E4-00

(replaces part #
90201-12688-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
2099009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
211FK-18152-00-00LEVER, SHIFT 4$100.99$78.77Usually ships in 7-10 business days
222H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
2342X-18115-00-00ROD, SHIFT$17.99$14.75Usually ships in 7-10 business days
2495380-06700-00

(replaces part #
95304-06700-00)

NUT$9.49$7.404 In-Stock
2590170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
2697017-06020-00

(replaces part #
97027-06020-00)

BOLT$4.06$3.4910+ In-Stock
