2011 Yamaha WR450F Clutch OEM Parts Diagram

Submodel WR450F - WR450FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

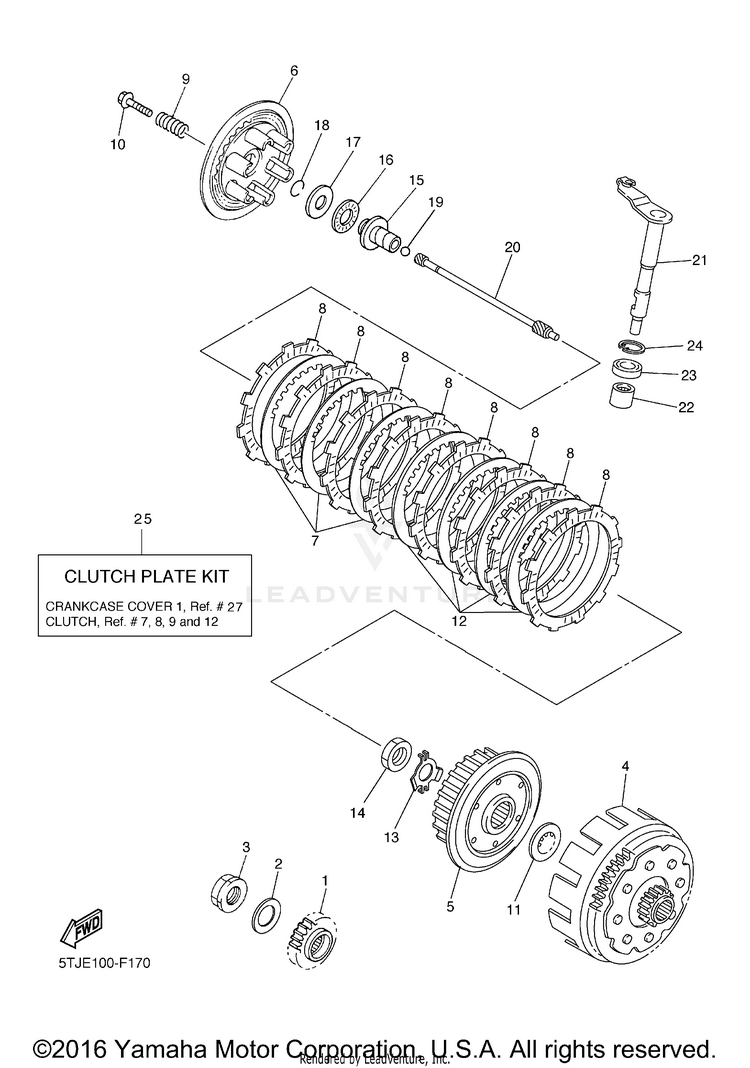

CLUTCH

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S2-16111-60-00GEAR, PRIMARY DRIVE$159.99$124.793 In-Stock
290208-25045-00WASHER, CONICAL SPRING$17.49$13.647 In-Stock
390179-20009-00NUT$22.99$17.934 In-Stock
45XD-16150-60-00PRIMARY DRIVEN GEAR COMP.$637.99$497.636 In-Stock
55TA-16371-20-00

(replaces part #
5TA-16371-10-00)

BOSS, CLUTCH$151.99$118.5510+ In-Stock
65JG-16351-00-00PLATE, PRESSURE 1$98.99$77.2110+ In-Stock
74X7-16325-10-00

(replaces part #
4X7-16325-00-00)

PLATE, CLUTCH 2 | INCL. IN CLUTCH PLATE KIT$17.99$16.0310+ In-Stock
85TA-16321-00-00PLATE, FRICTION | INCL. IN CLUTCH PLATE KIT$28.99$22.6110+ In-Stock
990501-237L0-00SPRING, COMPRESSION | INCL. IN CLUTCH PLATE KIT$8.49$6.6210+ In-Stock
1090159-06092-00SCREW, WITH WASHER$10.49$8.1810+ In-Stock
115XD-16154-00-00PLATE, THRUST 1$16.49$12.8610+ In-Stock
121TA-16325-10-00

(replaces part #
1TA-16325-00-00)

PLATE, CLUTCH 2 | INCL. IN CLUTCH PLATE KIT$12.49$9.7410+ In-Stock
1390215-20005-00WASHER, LOCK$8.49$6.6210+ In-Stock
1490170-20327-00NUT$20.99$16.3710+ In-Stock
155JG-16356-00-00ROD, PUSH 1$74.99$58.492 In-Stock
1693340-21505-00BEARING$20.99$16.3710+ In-Stock
1790201-125L6-00WASHER, PLATE$10.49$8.184 In-Stock
1893440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
1993511-32027-00BALL$9.49$7.4010+ In-Stock
202S2-16357-01-00

(replaces part #
2S2-16357-00-00)

ROD, PUSH 2$72.99$56.933 In-Stock
215TJ-16381-20-00PUSH LEVER COMP.$112.99$88.13Usually ships in 7-10 business days
2293317-11287-00BEARING$25.99$20.2710+ In-Stock
2393102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
2499009-20500-00CIRCLIP$1.85$1.599 In-Stock
255TJ-W001G-00-00CLUTCH PLATE KIT | AP$191.99$149.756 In-Stock
AFTERMARKET ALTERNATIVE
$75.98$63.9910+ In-Stock
