2011 Yamaha WR450F Meter OEM Parts Diagram

Submodel WR450F - WR450FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

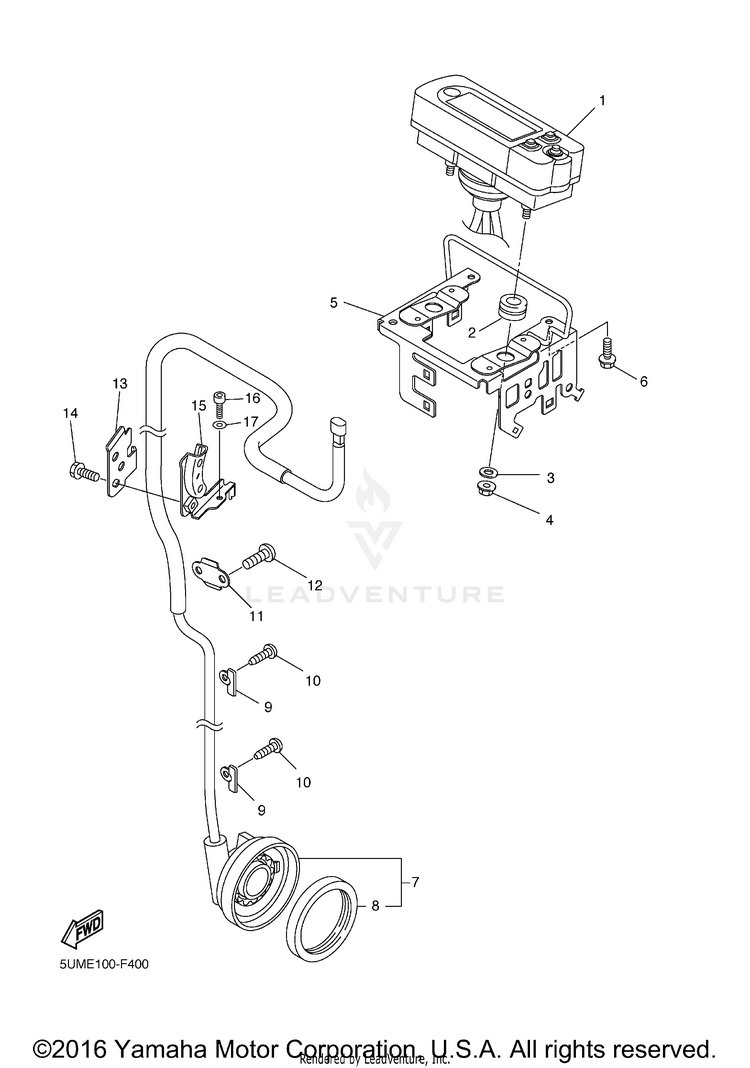

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TJ-83500-E0-00SPEEDOMETER ASSY (MILE)$474.99$423.32Usually ships in 7-10 business days
290480-14012-00GROMMET$13.49$10.524 In-Stock
390201-05021-00WASHER, PLATE$2.10$1.8110+ In-Stock
495702-05500-00NUT, WITH WASHER-$1.118 In-Stock
55UM-83519-E0-00BRACKET, METER$102.99$80.33Usually ships in 7-10 business days
690105-06110-00BOLT, FLANGE$9.49$7.4010+ In-Stock
75TJ-83755-C3-00

(replaces part #
5TJ-83755-C0-00)

SENSOR, SPEED$373.99$291.713 In-Stock
893105-47007-00OIL SEAL$17.49$13.647 In-Stock
95TJ-8375F-C0-00PLATE 2$10.99$8.577 In-Stock
1097702-40010-00SCREW, TAPPING$4.65$4.0010+ In-Stock
115TJ-8375E-C0-00PLATE 1$8.49$6.624 In-Stock
1292012-05008-00BOLT, BUTTON HEAD$3.05$2.6210+ In-Stock
135UM-83595-E0-00CLAMP$14.49$11.88Usually ships in 7-10 business days
1490105-06105-00BOLT, FLANGE$8.49$6.625 In-Stock
155UM-23591-E0-00BRACKET 1$29.99$24.59Usually ships in 7-10 business days
1692012-06012-00BOLT, BUTTON HEAD$4.70$4.0410+ In-Stock
1792990-06600-00

(replaces part #
92902-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
