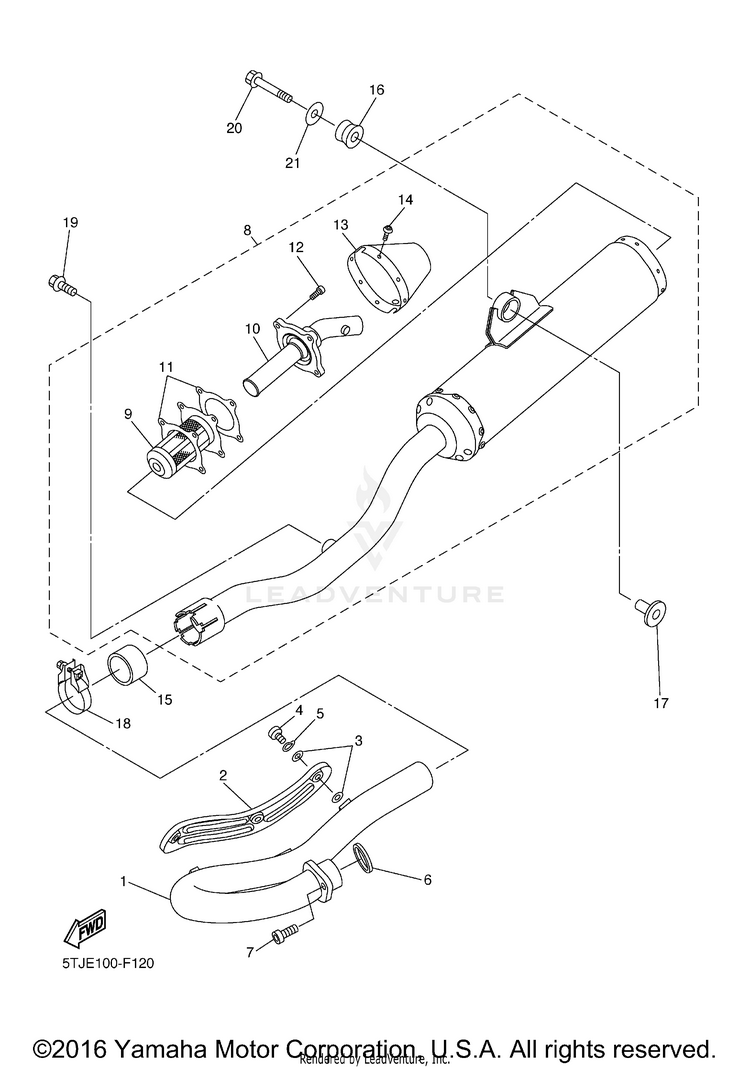

2011 Yamaha WR450F Exhaust OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5TJ-14611-10-00	PIPE, EXHAUST 1	$265.99	$220.67	Usually ships in 7-10 business days
2	5TA-14628-00-00	PROTECTOR, EXHAUST PIPE	$77.99	$60.83	2 In-Stock
3	4BD-14766-00-00	WASHER, PROTECTOR	$5.99	$4.67	10+ In-Stock
4	98980-06008-00	SCREW, BIND	-	$1.22	10+ In-Stock
5	90206-06090-00	WASHER, WAVE	$9.49	$7.40	10+ In-Stock
6	3VD-14613-01-00	GASKET, EXHAUST PIPE \| INC. IN TOP END GASKET KIT	$12.99	$10.13	10+ In-Stock
7	90110-08097-00	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	10+ In-Stock
8	5TJ-14710-E0-00	MUFFLER ASSY 1	$941.99	$788.36	Usually ships in 7-10 business days
9	5TJ-14780-00-00	SPARK ARRESTER ASSY	$104.99	$81.89	Usually ships in 7-10 business days
10	5TJ-14784-00-00	PIPE, TAIL	$157.99	$123.23	3 In-Stock
11	5TJ-14623-00-00	GASKET, EXHAUST PIPE	$14.49	$11.30	6 In-Stock
12	90110-05041-00	BOLT, HEXAGON SOCKET HEAD	$4.05	$3.64	Usually ships in 7-10 business days
13	5TJ-14799-00-00	CAP	$131.99	$102.95	Usually ships in 7-10 business days
14	92012-05008-00	BOLT, BUTTON HEAD	$3.05	$2.62	10+ In-Stock
15	5PH-14714-00-00	GASKET, MUFFLER	$47.99	$37.43	2 In-Stock
16	5BE-14747-00-00	DAMPER, MUFFLER	$11.99	$9.35	3 In-Stock
17	90387-08081-00	COLLAR	$9.49	$7.40	8 In-Stock
18	5BE-14788-00-00	BAND, SILENCER	$38.99	$30.41	10+ In-Stock
19	90105-08307-00	BOLT, FLANGE	$10.49	$8.18	10+ In-Stock
20	90105-08137-00	BOLT, FLANGE	$6.49	$5.06	10+ In-Stock
21	90201-08061-00	WASHER, PLATE	$9.49	$7.40	4 In-Stock
