2011 Yamaha WR450F Rear Wheel OEM Parts Diagram

Submodel WR450F - WR450FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

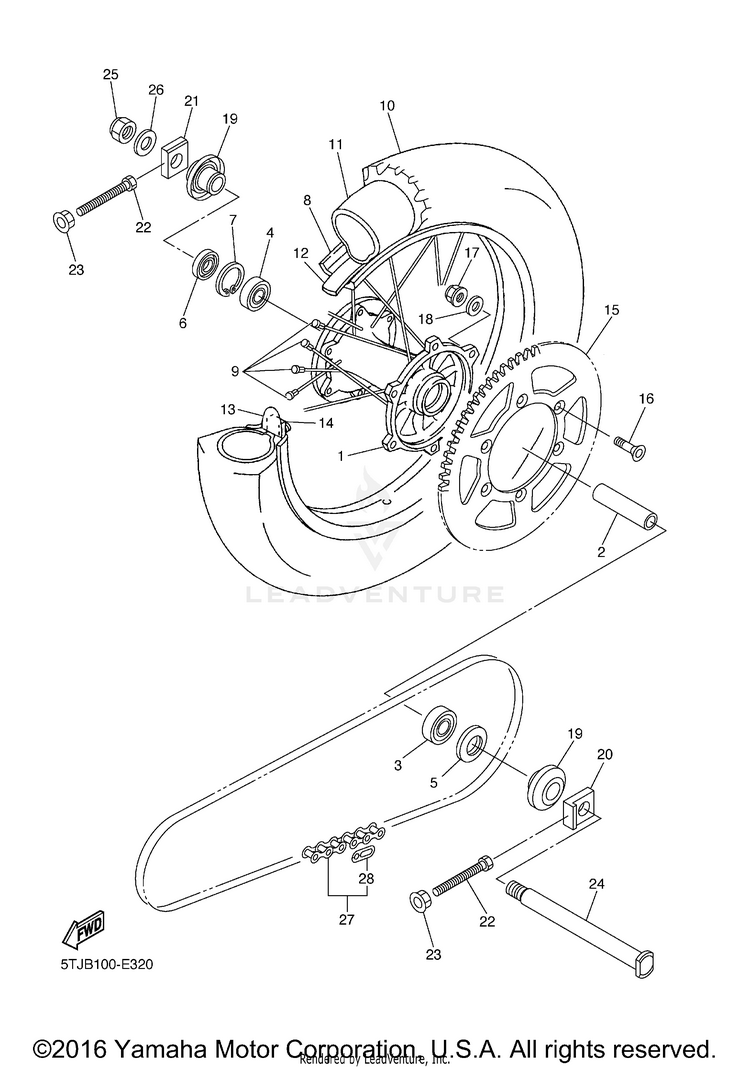

REAR WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15ET-25311-00-00HUB, REAR$336.99$262.854 In-Stock
25ET-25317-00-00SPACER, BEARING$53.99$42.118 In-Stock
393306-27212-00BEARING$82.99$64.7310+ In-Stock
493306-07202-00BEARING$42.99$33.5310+ In-Stock
593106-30001-00OIL SEAL$13.49$10.5210+ In-Stock
693106-30045-00OIL SEAL$11.49$8.9610+ In-Stock
799009-45500-00CIRCLIP$2.60$2.2410+ In-Stock
894421-18008-00RIM (2.15-18)$322.99$268.40Usually ships in 7-10 business days
95GS-25304-00-00SPOKE SET, REAR$193.99$151.316 In-Stock
1094111-18012-00TIRE (110/100-18 64M D756) | DUNLOP$131.99$111.18Usually ships in 7-10 business days
1194212-18188-00TUBE (110-140/80-100-18 M/C) | DUNLOP$38.99$30.418 In-Stock
1294340-18086-00

(replaces part #
94309-18146-00)

BAND, RIM (2.50-18) | DUNLOP$19.49$15.208 In-Stock
133JE-25394-00-00SPACER, BEAD$41.99$32.7510+ In-Stock
144XM-25364-00-00DAMPER$8.49$6.6210+ In-Stock
155GS-25448-50-00SPROCKET, DRIVEN (48T) | AP$50.99$39.77Usually ships in 7-10 business days
155TJ-25450-80-00SPROCKET, DRIVEN (50T) | STD$68.99$53.812 In-Stock
155TJ-25452-80-00SPROCKET, DRIVEN (52T) | AP$99.99$77.992 In-Stock
1690109-08078-00BOLT$6.49$5.0610+ In-Stock
1790185-08008-00NUT, SELF-LOCKING$8.49$6.6210+ In-Stock
1890201-08048-00WASHER, PLATE$6.49$5.0610+ In-Stock
195TJ-2530S-81-00

(replaces part #
5TJ-2530S-80-00)

COLLAR ASSY$37.99$29.6310+ In-Stock
201C3-25388-H0-00PULLER, CHAIN 1$24.99$19.492 In-Stock
211C3-25389-H0-00PULLER, CHAIN 2$33.99$26.515 In-Stock
2290101-08006-00BOLT$9.49$7.4010+ In-Stock
2390179-08019-00NUT$8.49$6.6210+ In-Stock
241C3-25381-90-00AXLE, WHEEL$100.99$78.7710+ In-Stock
2590185-20002-00NUT, SELF-LOCKING$31.99$24.9510+ In-Stock
2690201-20020-00WASHER, PLATE$10.49$8.1810+ In-Stock
2794581-76114-00

(replaces part #
9Y58A-76113-00)

CHAIN D.I.D.520VM$225.99$200.03Usually ships in 7-10 business days
2894681-76021-00JOINT, CHAIN (DID 520VM-ZJ)$9.99$8.9910+ In-Stock
