2011 Yamaha WR450F Handle Switch Lever OEM Parts Diagram

Submodel WR450F - WR450FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

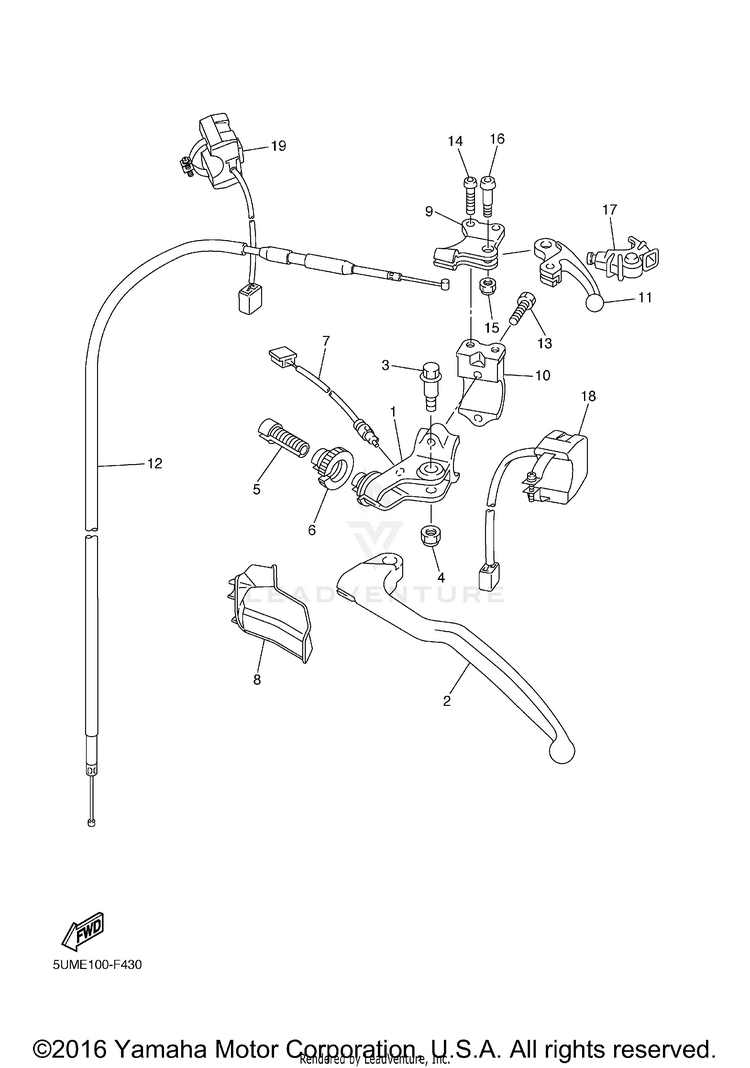

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TJ-82911-80-00HOLDER, LEVER 1$42.99$33.5310+ In-Stock
25TJ-83912-82-00

(replaces part #
5TJ-83912-80-00)

LEVER 1$36.99$28.8510+ In-Stock
390109-06034-00BOLT$8.49$7.0110+ In-Stock
45LP-84126-10-00NUT, LENS FITTING$7.49$5.8410+ In-Stock
55HD-26337-00-00BOLT, ADJUSTING$12.99$10.1310+ In-Stock
65HD-83951-01-00

(replaces part #
5HD-83951-00-00)

BOLT, CABLE ADJUST$48.99$38.216 In-Stock
75TJ-82917-02-00SWITCH$50.99$39.778 In-Stock
85TJ-26372-80-00COVER, HANDLE LEVER 1$41.99$32.752 In-Stock
95XD-82946-01-00

(replaces part #
5XD-82946-00-00)

HOLDER, STARTER LEVE$34.99$27.294 In-Stock
105XD-82913-01-00

(replaces part #
5XD-82913-00-00)

HOLDER, LEVER LOWER$17.99$14.033 In-Stock
115TA-83941-00-00LEVER, STARTER$21.99$17.1510+ In-Stock
125UM-26334-E0-00CABLE, STARTER 2$41.99$32.752 In-Stock
1397095-05016-00

(replaces part #
97002-05016-00)

BOLT$1.75$1.5010+ In-Stock
1492012-05012-00BOLT, BUTTON HEAD$4.75$4.085 In-Stock
1595617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1690149-05162-00SCREW$10.49$8.1810+ In-Stock
175TA-26339-00-00BOOT$7.49$5.842 In-Stock
185UM-83976-E2-00SWITCH, ENGINE STOP$76.99$60.053 In-Stock
195UM-83976-F2-00SWITCH, HANDLE 1$76.99$60.057 In-Stock
AFTERMARKET ALTERNATIVE
$19.99$13.9910+ In-Stock
