2011 Yamaha WR450F Fender OEM Parts Diagram

Submodel WR450F - WR450FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

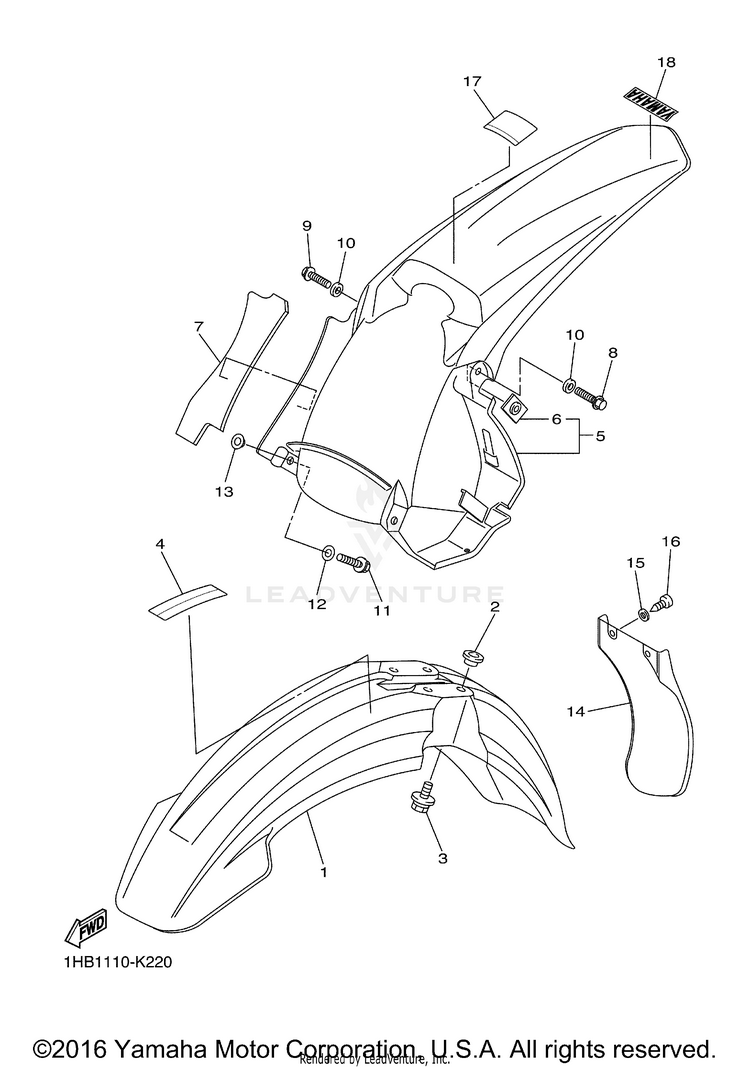

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11C3-21511-51-00FENDER, FRONT$34.99$34.294 In-Stock
290387-06090-00COLLAR$9.49$7.4010+ In-Stock
390119-06147-00BOLT, WITH WASHER-$1.3310+ In-Stock
43FB-2415E-02-00LABEL, CAUTION$5.49$4.283 In-Stock
55UM-21610-E0-00REAR FENDER COMP.$39.99$31.192 In-Stock
65XE-21635-10-00NUT, REAR FENDER$14.49$11.3010+ In-Stock
75UM-2174T-E0-00INSULATOR, SIDE COVER 2$18.99$15.575 In-Stock
890105-06127-00BOLT, FLANGE$9.49$7.407 In-Stock
990105-06100-00BOLT, FLANGE$8.49$6.6210+ In-Stock
1090201-06032-00WASHER, PLATE$9.49$7.409 In-Stock
1190105-06106-00BOLT, FLANGE$4.05$3.4810+ In-Stock
1290201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
1390387-06009-00COLLAR$11.49$8.9610+ In-Stock
145TA-21642-00-00GUARD, FLAP$43.99$34.3110+ In-Stock
1590201-06084-00WASHER, PLATE$4.05$3.484 In-Stock
1697702-60016-00SCREW, TAPPING$2.35$2.0210+ In-Stock
175PA-2118K-01-00

(replaces part #
5PA-2118K-00-00)

LABEL, CAUTION$7.49$5.849 In-Stock
185UM-2153E-01-00

(replaces part #
5UM-2153E-00-00)

EMBLEM, YAMAHA$3.30$2.84Not Shipping
