2011 Yamaha WR450F Headlight OEM Parts Diagram

Submodel WR450F - WR450FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

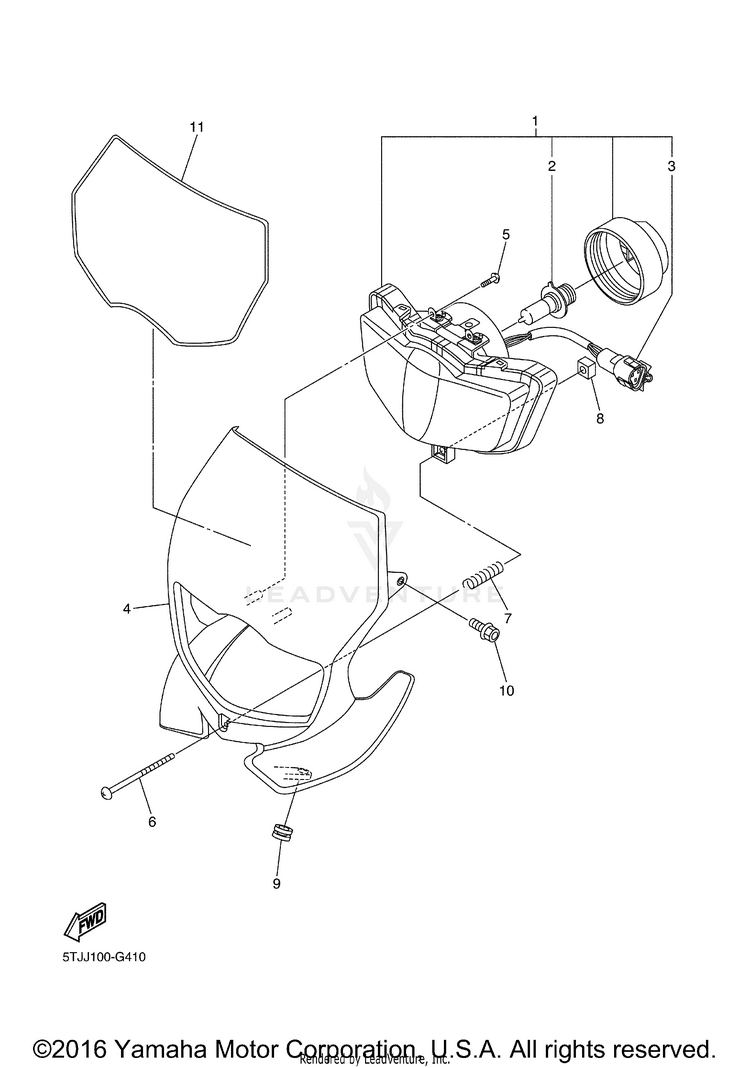

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UM-84310-E1-00HEADLIGHT UNIT ASSY$293.99$229.31Usually ships in 7-10 business days
25VM-84314-00-00BULB, HEADLIGHT(12V-35/36.5W) | HALOGEN$46.99$44.083 In-Stock
35UM-84340-E1-00SOCKET CORD ASSY 1$39.99$32.79Usually ships in 7-10 business days
45UM-84330-E0-00BODY ASSY$53.99$42.114 In-Stock
597780-50116-00

(replaces part #
97702-50516-00)

SCREW, TAPPING$1.49$1.288 In-Stock
690157-04005-00SCREW, PAN HEAD$4.35$3.742 In-Stock
790501-120A3-00SPRING, COMPRESSION$3.45$2.972 In-Stock
85BF-84334-00-00NUT, ADJUSTING$8.49$6.623 In-Stock
990480-12020-00GROMMET$10.49$8.1810+ In-Stock
1090105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
115TJ-2339E-00-00GRAPHIC 1$51.99$40.553 In-Stock
