1982 Yamaha SR185 Crankcase OEM Parts Diagram

Submodel SR185J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

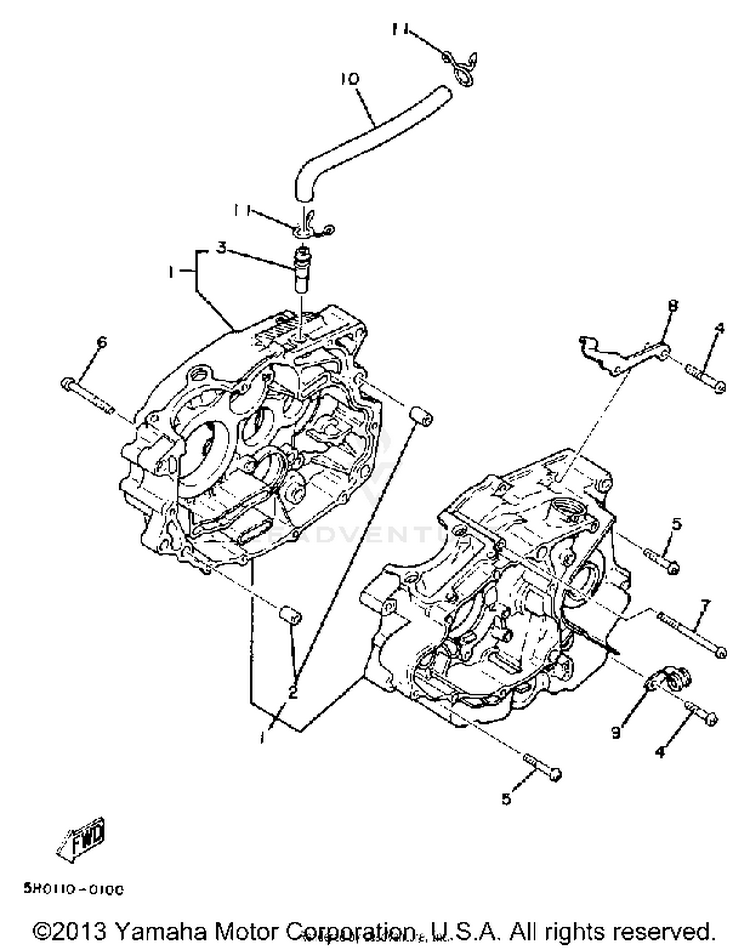

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-15100-01-00CRANKCASE ASSEMBLY$290.99$226.97Usually ships in 7-10 business days
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
3371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
497885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
598580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
698580-06560-00

(replaces part #
92580-06560-00)

SCREW, PAN HEAD (92580-06560-00$10.49$8.184 In-Stock
798507-06085-00

(replaces part #
98511-06085-00)

SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
85H0-15441-00-00HOLDER, CLCH CABLE$3.96$3.56Usually ships in 7-10 business days
990462-06080-00CLAMP$15.49$12.70Usually ships in 7-10 business days
105H0-11166-00-00PIPE, BREATHER 1$5.04$4.54Usually ships in 7-10 business days
1190467-14015-00CLIP$9.49$7.407 In-Stock
