1982 Yamaha SR185 Fuel Tank OEM Parts Diagram

Submodel SR185J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

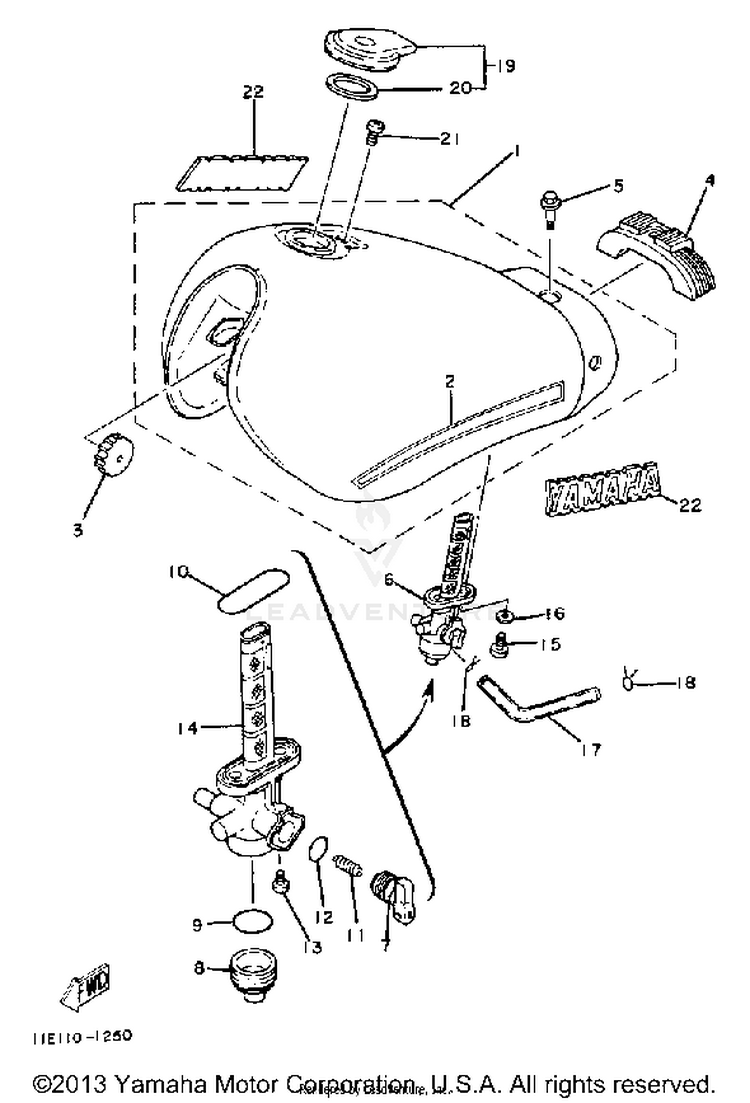

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5H0-24110-00-04FUEL TANK | U.R. CARDINAL RED$301.99$235.55Usually ships in 7-10 business days
15H0-24110-00-03FUEL TANK | U.R. BALBOA BLUE$346.99$270.65Usually ships in 7-10 business days
211E-24240-00-00GRAPHIC SET$19.28$15.81Usually ships in 7-10 business days
33TB-24181-00-00

(replaces part #
278-24181-00-00)

DAMPER, LOCATING 1$15.49$12.0810+ In-Stock
45H0-24182-00-00DAMPER, LOCATING 2$8.28$7.45Usually ships in 7-10 business days
590109-06610-00BOLT$3.95$3.56Usually ships in 7-10 business days
63MW-24500-00-00

(replaces part #
5H0-24500-00-00)

FUEL COCK ASSY 1$57.99$45.23Not Shipping
74L0-24524-00-00LEVER, COCK$19.99$16.39Usually ships in 7-10 business days
81A0-24521-01-00CUP, FILTER$28.99$23.77Usually ships in 7-10 business days
9498-24522-00-00GASKET$43.99$34.312 In-Stock
10214-24512-00-00GASKET$33.99$26.511 In-Stock
111A0-24529-01-00SPRING$7.49$6.74Not Shipping
121A0-24512-00-00GASKET$8.49$6.623 In-Stock
13619-24535-00-00SCREW, LEVER FITTING$2.25$2.02Not Shipping
144L0-24536-00-00STRAINER$39.99$32.79Usually ships in 7-10 business days
1590149-06011-00SCREW$2.05$1.7610+ In-Stock
1690202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
175H0-24311-00-00PIPE, FUEL 1$3.76$3.38Usually ships in 7-10 business days
1890467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
194X7-24602-10-00

(replaces part #
4X7-24602-02-00)

CAP ASSY$138.99$108.41Usually ships in 7-10 business days
204X7-24612-00-00PACKING, CAP$35.99$29.512 In-Stock
2198517-05010-00

(replaces part #
98506-05010-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
223X0-24161-01-00EMBLEM 1$51.99$40.55Usually ships in 7-10 business days
