1982 Yamaha SR185 Electrical 2 OEM Parts Diagram

Submodel SR185J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

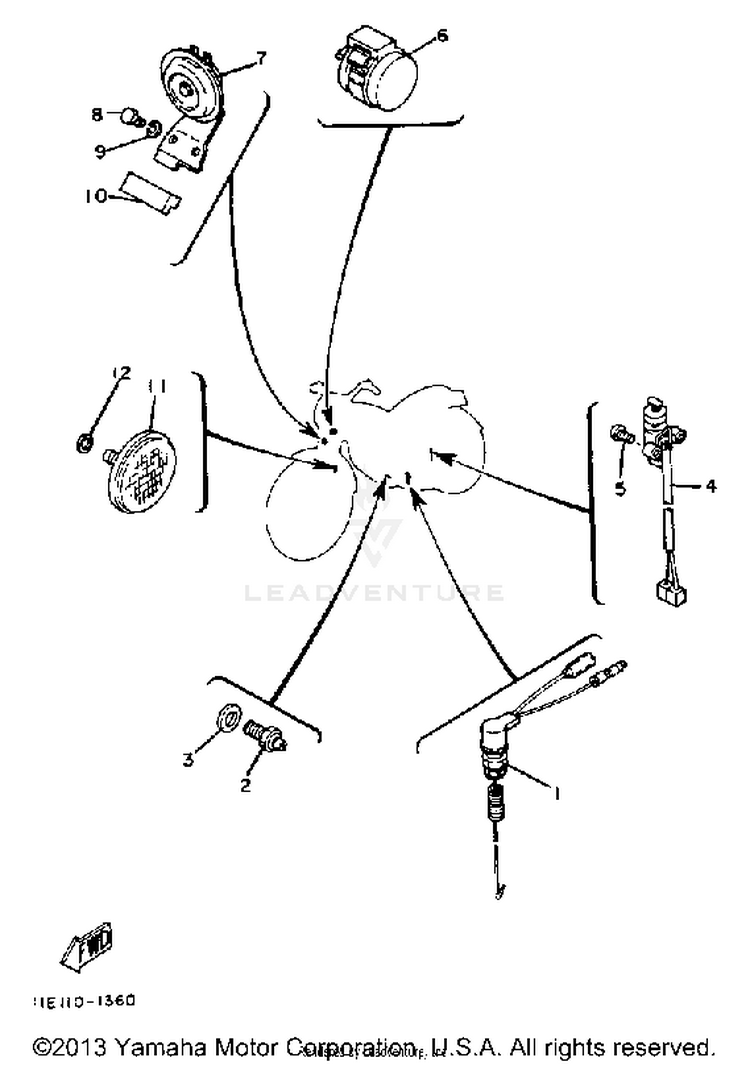

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13J0-82530-02-00

(replaces part #
3J0-82530-01-00)

STOP SWITCH ASY$21.99$18.03Usually ships in 7-10 business days
24GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
390430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
433E-82566-00-00

(replaces part #
5H0-82566-00-00)

SWITCH, SIDE STAND$150.99$117.77Usually ships in 7-10 business days
598707-05020-00

(replaces part #
98706-05020-00)

SCREW, FLAT HEAD$8.49$7.64Usually ships in 7-10 business days
63Y6-83350-71-00

(replaces part #
3Y6-83350-70-00)

FLASHER RELAY ASSY$51.99$40.55Usually ships in 7-10 business days
75H0-83371-00-00HORN$59.99$46.79Usually ships in 7-10 business days
897013-06012-00BOLT$6.49$5.0610+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
10360-21717-01-00DAMPER$8.49$6.628 In-Stock
11355-85111-01-00REFLECTOR, FRONT 1$37.99$31.15Usually ships in 7-10 business days
1290202-05191-00

(replaces part #
90430-06012-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
