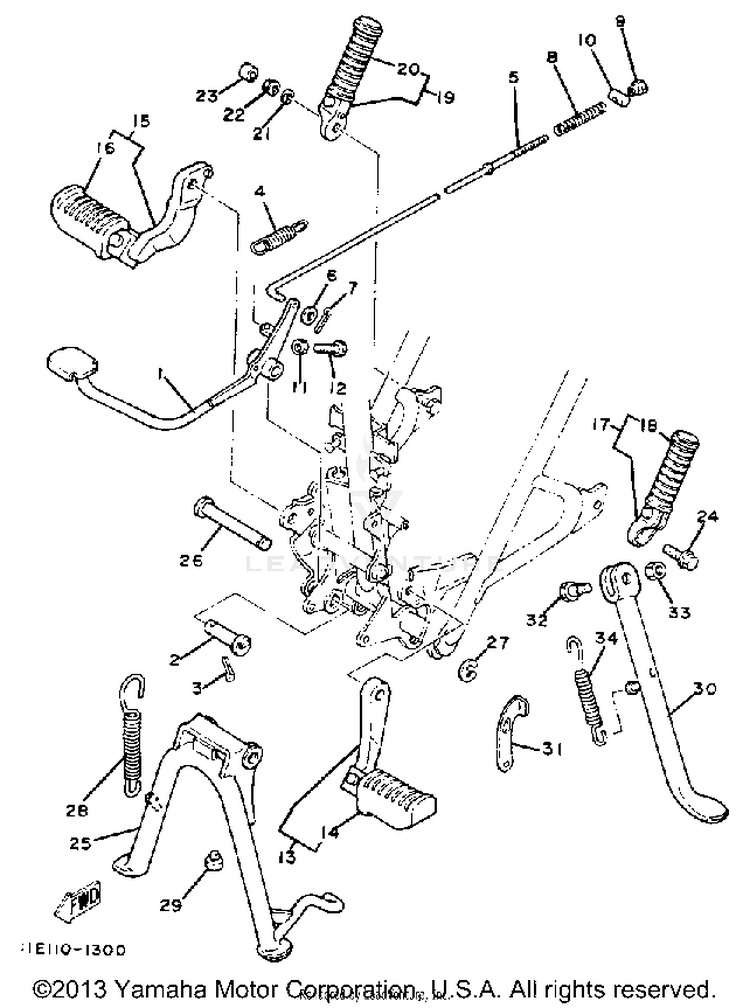

| 1 | 5H0-27211-00-93 | PEDAL, BRAKE | CHROME PLATED | $54.99 | $42.89 | Usually ships in 7-10 business days | | |
| 2 | 5H0-27212-00-00 | SHAFT, BRAKE PEDAL | $4.56 | $4.10 | Usually ships in 7-10 business days | | |
| 3 | 91490-30030-00 (replaces part #
91401-30030-00) | PIN, COTTER | $8.49 | $6.62 | 10+ In-Stock | | |
| 4 | 90506-20115-00 | SPRING, TENSION | $5.60 | $5.04 | Usually ships in 7-10 business days | | |
| 5 | 3Y6-27231-00-00 | ROD, BRAKE | $16.49 | $13.52 | Usually ships in 7-10 business days | | |
| 6 | 92990-06200-00 | WASHER, PLAIN | - | $1.28 | 10+ In-Stock | | |
| 7 | 91490-20025-00 (replaces part #
91490-20020-00) | PIN, COTTER | $1.99 | $1.71 | 10+ In-Stock | | |
| 8 | 90501-10245-00 | SPRING, COMPRESSION | $9.49 | $7.40 | 10+ In-Stock | | |
| 9 | 90179-06411-00 | NUT, SPECIAL SHAPE | $9.49 | $7.40 | 9 In-Stock | | |
| 10 | 90249-12008-00 | PIN, SPECIAL SHAPE | $9.49 | $7.40 | 10+ In-Stock | | |
| 11 | 90170-06184-00 | NUT | $6.49 | $5.06 | 8 In-Stock | | |
| 12 | 90101-06016-00 (replaces part #
90101-06410-00) | BOLT | $10.49 | $8.18 | 5 In-Stock | | |
| 13 | 5H0-27410-00-R4 | FRT FOOTREST ASSEMBLY L | BLACK | $106.99 | $83.45 | Usually ships in 7-10 business days | | |
| 14 | 5H0-27413-00-00 | COVER, FOOTREST | $31.99 | $26.23 | Usually ships in 7-10 business days | | |
| 15 | 5H0-27420-00-R4 | FRT FOOTREST ASSEMBLY R | $106.99 | $83.45 | Usually ships in 7-10 business days | | |
| 16 | 5H0-27413-00-00 | COVER, FOOTREST | $31.99 | $26.23 | Usually ships in 7-10 business days | | |
| 17 | 5H0-27430-00-00 | RR FOOTREST ASSEMBLY 1 | $35.99 | $29.51 | Usually ships in 7-10 business days | | |
| 18 | 120-27433-00-00 | COVER, REAR FOOTREST | $9.49 | $7.40 | 2 In-Stock | | |
| 19 | 5H0-27440-00-00 | RR FOOTREST ASSEMBLY 2 | $20.99 | $17.21 | Usually ships in 7-10 business days | | |
| 20 | 120-27433-00-00 | COVER, REAR FOOTREST | $9.49 | $7.40 | 2 In-Stock | | |
| 21 | 92990-10100-00 | WASHER, SPRING | $3.25 | $2.80 | 6 In-Stock | | |
| 22 | 95704-10500-00 (replaces part #
95701-10500-00) | NUT, WITH WASHER | - | $2.28 | 5 In-Stock | | |
| 23 | 262-21399-00-00 | CAP, TOOL BOX | $1.65 | $1.48 | Usually ships in 7-10 business days | | |
| 24 | 95817-10016-00 (replaces part #
95811-10016-00) | BOLT, FLANGE | $9.49 | $7.40 | 6 In-Stock | | |
| 25 | 5H0-27111-00-R4 | STAND, MAIN | BLACK | $41.08 | $33.69 | Usually ships in 7-10 business days | | |
| 26 | 5H0-27112-00-00 | SHAFT, MAIN STAND | $2.37 | $2.13 | Usually ships in 7-10 business days | | |
| 27 | 93430-12008-00 | CIRCLIP, E-TYPE | $9.49 | $7.40 | 10+ In-Stock | | |
| 28 | 90506-40268-00 | SPRING, TENSION | $4.16 | $3.74 | Usually ships in 7-10 business days | | |
| 29 | 371-27114-00-00 | STOPPER, MAIN STAND | $8.49 | $6.62 | 10+ In-Stock | | |
| 30 | 5H0-27311-01-00 (replaces part #
5H0-27311-00-R4) | STAND, SIDE | BLACK | $56.99 | $44.45 | Usually ships in 7-10 business days | | |
| 31 | 5H0-27315-00-00 | LINK, SIDE STAND | $16.99 | $13.93 | Usually ships in 7-10 business days | | |
| 32 | 90109-08032-00 | BOLT | $9.49 | $7.40 | 4 In-Stock | | |
| 33 | 90185-08055-00 | NUT, SELF-LOCKING | $10.49 | $8.18 | 9 In-Stock | | |
| 34 | 90506-29266-00 | SPRING, TENSION | $16.49 | $13.52 | Usually ships in 7-10 business days | | |
