1982 Yamaha SR185 Shift Shaft Pedal OEM Parts Diagram

Submodel SR185J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

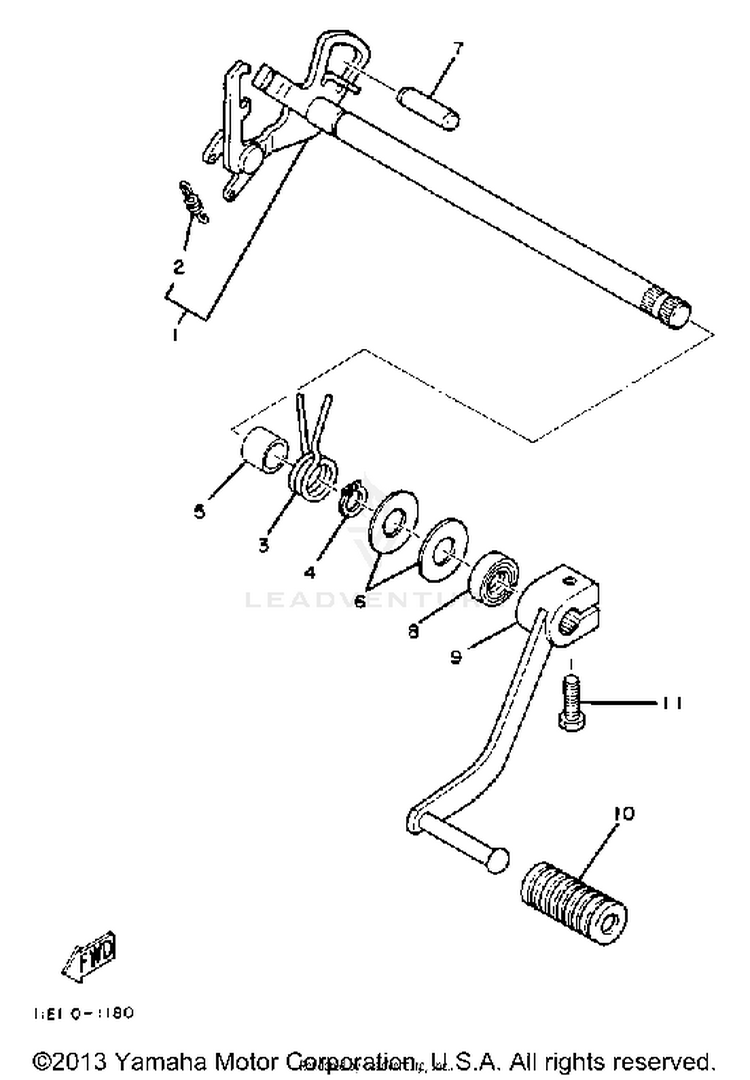

SHIFT SHAFT PEDAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-18120-02-00SHIFT LEVER ASSY$117.99$92.032 In-Stock
290506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
390508-32534-00SPRING, TORSION$7.49$6.74Usually ships in 7-10 business days
499006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
590387-12033-00

(replaces part #
90387-124F4-00)

COLLAR$8.49$6.627 In-Stock
690201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
793608-30152-00PIN, DOWEL$3.50$3.15Not Shipping
893102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
95H0-18111-00-00PEDAL, SHIFT$39.99$32.79Usually ships in 7-10 business days
10132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
1197017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
