FLASHER LIGHT

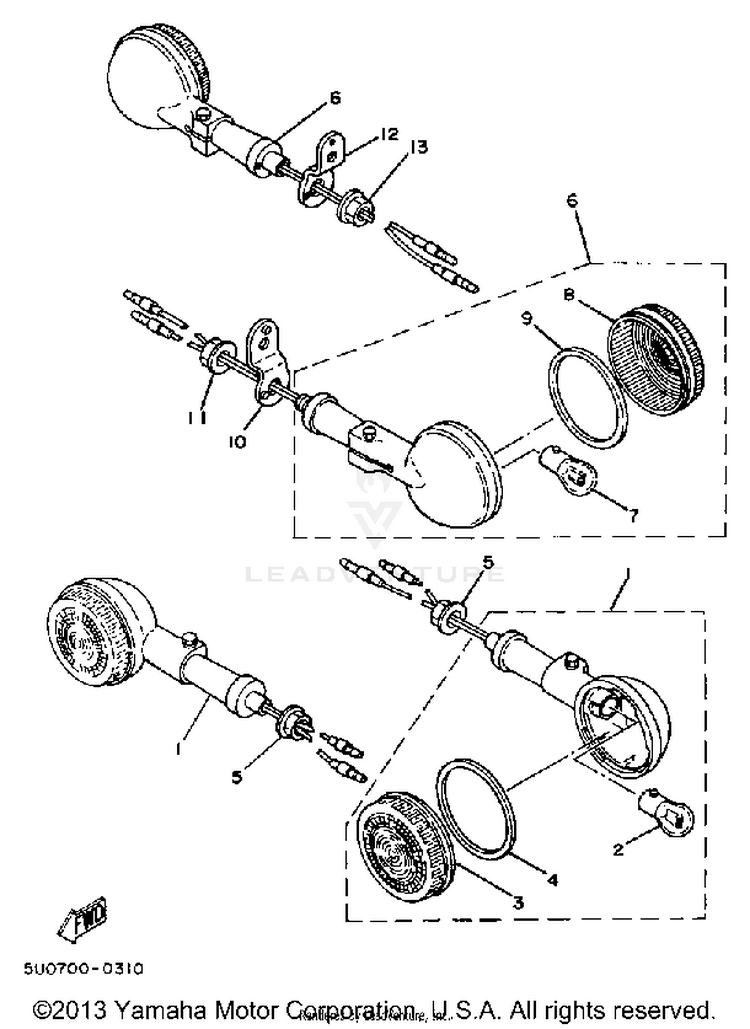

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-83310-70-00FRT FLSHR LITE ASSEMBLY$136.99$106.85Usually ships in 7-10 business days
2256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
33Y6-83312-00-00LENS, FLASHER$11.99$9.83Usually ships in 7-10 business days
43Y6-83313-00-00GASKET, FLASHER LENS$8.49$6.629 In-Stock
590179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
63Y6-83330-70-00R FLSHR LITE ASSEMBLY$99.99$77.99Usually ships in 7-10 business days
7256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
83Y6-83312-00-00LENS, FLASHER$11.99$9.83Usually ships in 7-10 business days
93Y6-83313-00-00GASKET, FLASHER LENS$8.49$6.629 In-Stock
105H0-83318-00-00STAY, FLASHER 1$17.49$14.34Usually ships in 7-10 business days
1190179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
125H0-83328-00-00STAY, FLASHER 2$19.49$15.98Usually ships in 7-10 business days
1390179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
