1982 Yamaha SR185 Oil Pump OEM Parts Diagram

Submodel SR185J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

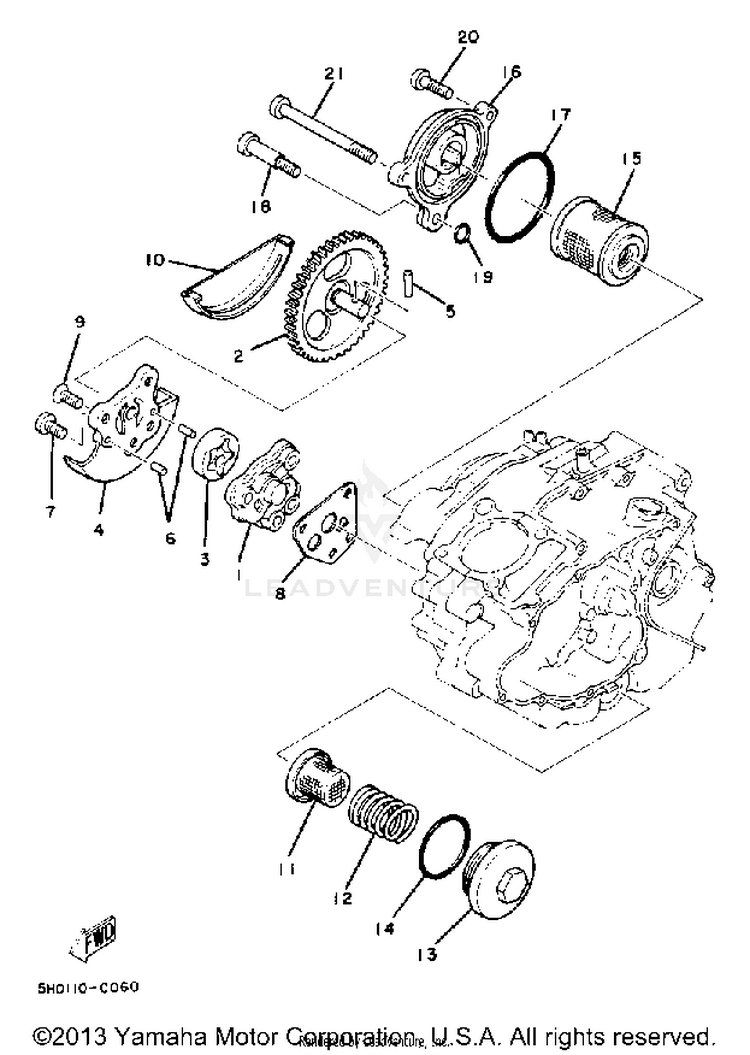

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-13336-00-00HOUSING, ROTOR$21.12$17.32Usually ships in 7-10 business days
25H0-13326-01-00

(replaces part #
5H0-13326-00-00)

GEAR, PUMP DRIVEN 2 (45T)$43.99$36.07Usually ships in 7-10 business days
35H0-13310-00-00ROTOR ASSY 1$34.99$28.69Usually ships in 7-10 business days
45H0-13316-00-00COVER, PUMP$12.29$10.08Usually ships in 7-10 business days
593603-12030-00PIN, PLUNGER$2.80$2.4110+ In-Stock
693603-07073-00PIN, DOWEL$10.49$8.187 In-Stock
790151-06005-00

(replaces part #
90151-06010-00)

SCREW, COUNTERSUNK$10.49$8.184 In-Stock
83GD-13329-00-00

(replaces part #
4BE-13329-00-00)

GASKET, PUMP COVER$8.49$6.62
998707-06030-00

(replaces part #
98701-06030-00)

SCREW, FLAT HEAD$7.99$6.237 In-Stock
105H0-13327-00-00COVER, PUMP GEAR$35.99$29.51Usually ships in 7-10 business days
1151Y-13411-00-00STRAINER, OIL$41.99$32.7510+ In-Stock
1290501-18576-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
135H0-15351-00-00PLUG, DRAIN$34.99$27.2910+ In-Stock
1493210-347A1-00

(replaces part #
93210-35389-00)

O-RING$8.49$6.6210+ In-Stock
155H0-13440-09-00

(replaces part #
5H0-13440-00-00)

ELEMENT ASSY, OIL CLEANER$11.49$9.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
165H0-13447-00-00COVER, OIL ELEMENT$51.99$40.55Usually ships in 7-10 business days
1793210-54175-00O-RING$13.99$10.9110+ In-Stock
1890109-06419-00BOLT$9.49$7.4010+ In-Stock
1993210-07438-00O-RING$9.49$7.404 In-Stock
2098580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
2198580-06575-00

(replaces part #
98501-06075-00)

SCREW, PAN HEAD$13.49$11.06Usually ships in 7-10 business days
