1982 Yamaha SR185 Frame OEM Parts Diagram

Submodel SR185J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

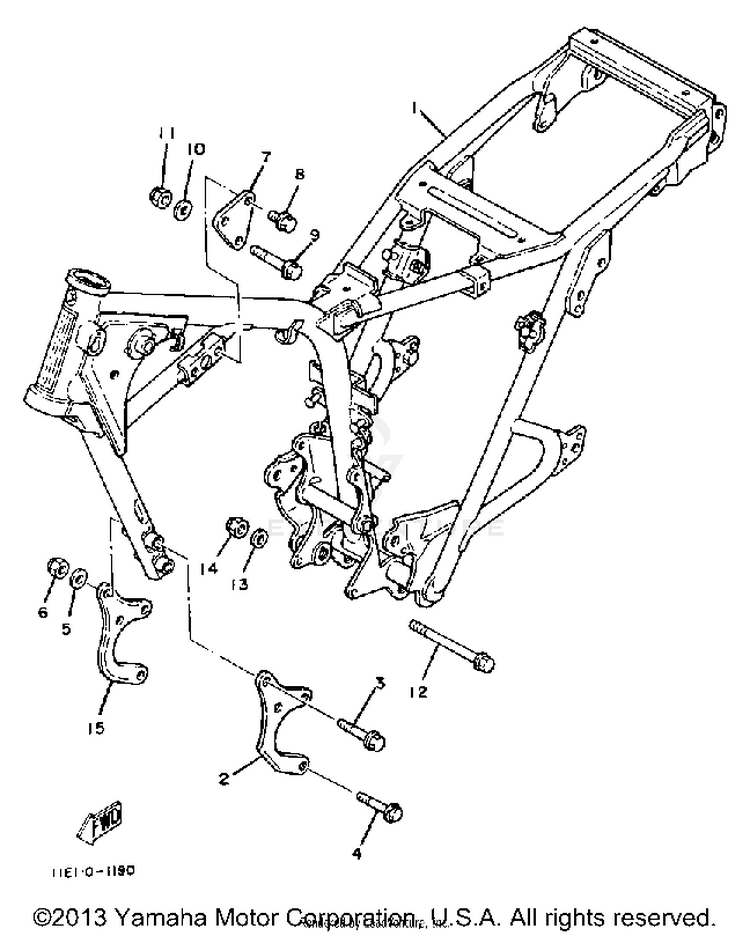

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
111E-21110-00-33FRAME | YAMAHA BLACK$335.99$268.71Usually ships in 7-10 business days
25H0-21316-00-00STAY, ENGINE 3$10.99$9.01Usually ships in 7-10 business days
395814-08065-00

(replaces part #
95811-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
495814-08065-00

(replaces part #
95811-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
590201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
690185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
75H0-21315-00-00STAY, ENGINE 2$3.76$3.38Usually ships in 7-10 business days
895817-08014-00

(replaces part #
95812-08014-00)

BOLT, FLANGE$2.50$2.1510+ In-Stock
995817-08050-00

(replaces part #
95811-08050-00)

BOLT, FLANGE$3.70$3.1810+ In-Stock
1090201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
1190185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
1295814-08110-00

(replaces part #
95811-08110-00)

BOLT, FLANGE$8.49$7.64Usually ships in 7-10 business days
1390201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
1490185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
155H0-21317-00-00STAY, ENGINE 4$8.49$7.64Usually ships in 7-10 business days
