1982 Yamaha XT125 Electrical 2 OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

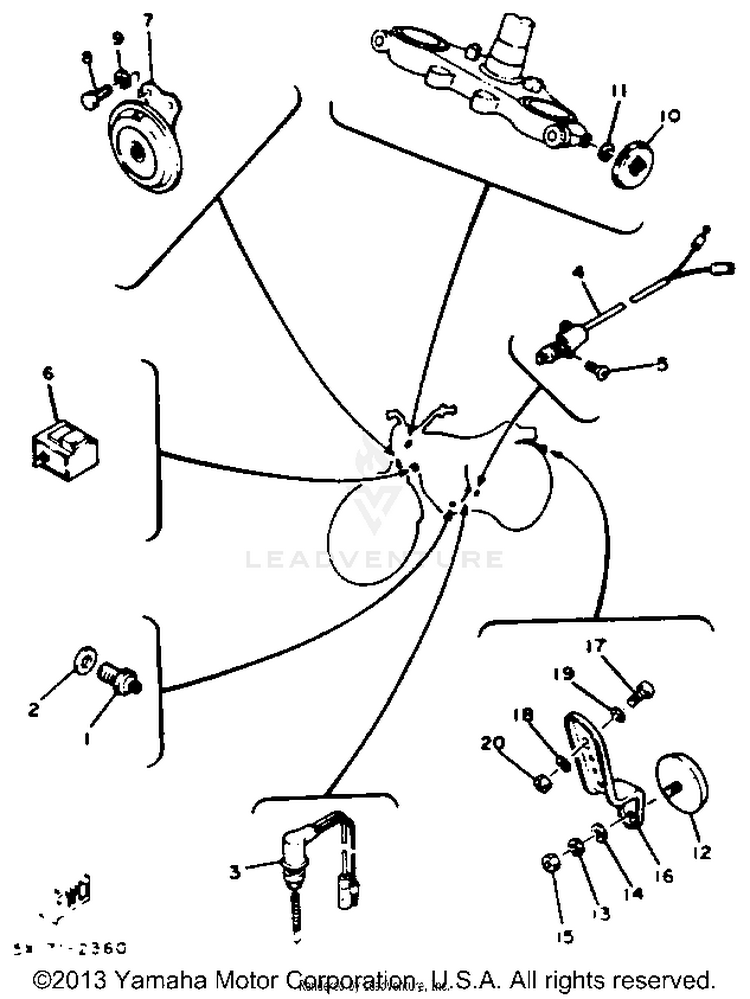

ELECTRICAL 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
290430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
32F1-82530-03-00

(replaces part #
2F1-82530-02-00)

STOP SWITCH ASSY$48.99$40.17Usually ships in 7-10 business days
45Y1-82566-00-00SWITCH, SIDE STAND$143.99$112.31Usually ships in 7-10 business days
598707-05020-00

(replaces part #
98706-05020-00)

SCREW, FLAT HEAD$8.49$7.64Usually ships in 7-10 business days
620G-83350-60-00FLASHER RELAY ASSEMBLY$101.99$79.55Not Shipping
71M8-83371-40-00

(replaces part #
5U7-83371-00-00)

HORN$66.99$57.59Usually ships in 7-10 business days
897013-06012-00BOLT$6.49$5.0610+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
10355-85111-01-00REFLECTOR, FRONT 1$37.99$31.15Usually ships in 7-10 business days
1190202-05191-00

(replaces part #
90430-06012-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
12449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1392990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1492990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
1595380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
165Y7-85132-00-00

(replaces part #
5Y1-85132-01-00)

BRACKET,REFLECT 1$6.99$6.29Not Shipping
1797885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1990201-06M08-00WASHER, PLATE$2.55$2.197 In-Stock
2095380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
