1982 Yamaha XT125 Fuel Tank OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

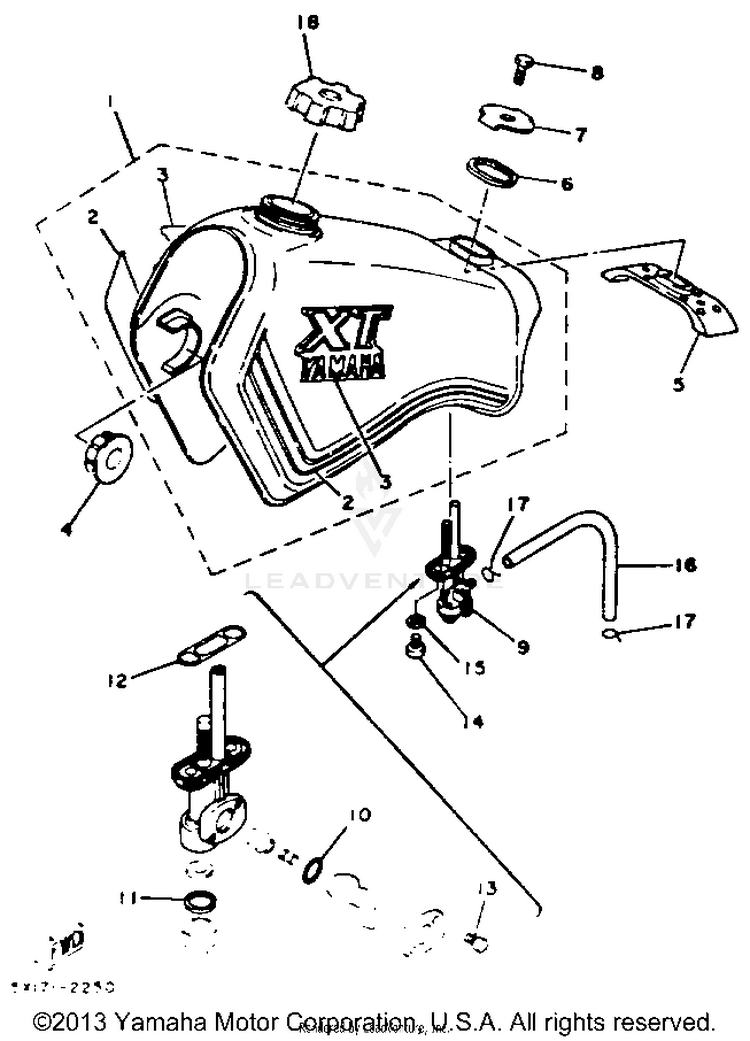

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115A-24110-00-05

(replaces part #
15A-24110-00-01)

FUEL TANK | CHAPPY RED$703.99$549.11Usually ships in 7-10 business days
215A-24240-00-00GRAPHIC SET$69.27$54.03Usually ships in 7-10 business days
33Y1-24161-20-00EMBLEM 1$23.99$19.67Not Shipping
44H7-24181-00-00DAMPER, LOCATING 1$7.49$5.844 In-Stock
515A-24182-00-00DAMPER, LOCATING 2$20.99$17.21Usually ships in 7-10 business days
63Y6-24183-00-00

(replaces part #
11H-24183-00-00)

DAMPER, LOCATING 3$8.49$6.6210+ In-Stock
711H-24186-00-00WASHER, SPECIAL$12.99$10.65Usually ships in 7-10 business days
897017-08025-00

(replaces part #
97001-08025-00)

BOLT$11.49$8.9610+ In-Stock
923F-24500-20-00

(replaces part #
15A-24500-03-00)

FUEL COCK ASSY 1$45.99$35.875 In-Stock
104X8-24534-00-00SEAL, COCK$14.49$11.307 In-Stock
114X8-24565-10-00

(replaces part #
4X8-24565-00-00)

GASKET$10.99$8.571 In-Stock
124X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
134X8-24535-00-00SCREW, LEVER FITTING$4.95$4.46Usually ships in 7-10 business days
1490149-06011-00SCREW$2.05$1.7610+ In-Stock
1590202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1690445-10752-00

(replaces part #
90445-10638-00)

HOSE (L110)$5.49$4.2810+ In-Stock
1790467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
183Y1-24610-02-00

(replaces part #
3Y1-24610-01-00)

CAP ASSY$38.99$31.97Usually ships in 7-10 business days
