1982 Yamaha XT125 Headlight OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

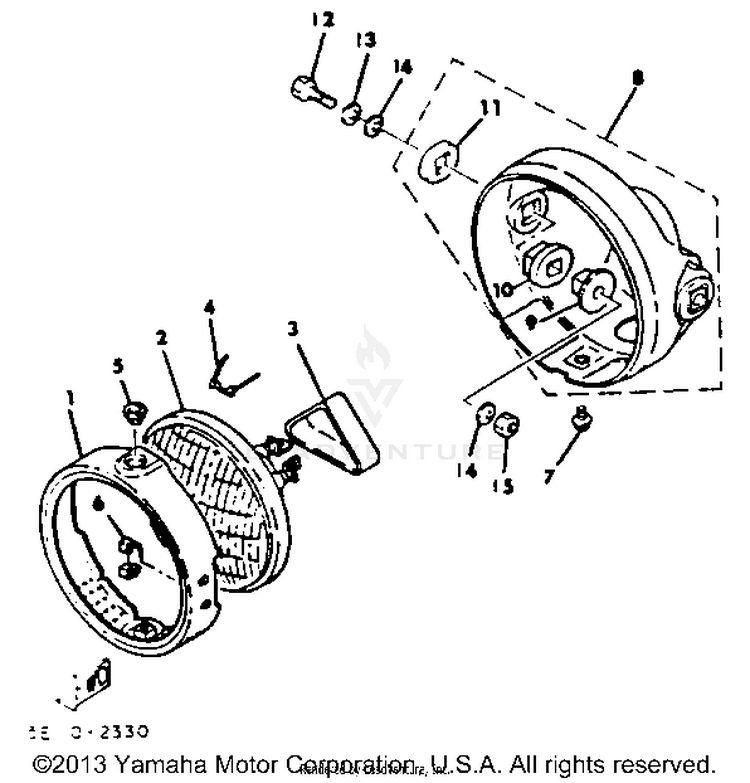

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13J0-84195-60-00RING, RETAINING$62.99$49.13Usually ships in 7-10 business days
22A6-84120-60-00LENS ASSEMBLY$84.99$66.29Not Shipping
3341-84397-61-00COVER, SOCKET$26.99$22.13Usually ships in 7-10 business days
41M1-84124-60-00SPRING, SET$9.49$8.54Usually ships in 7-10 business days
51M1-84133-60-00COLLAR, SCREW$8.49$7.64Usually ships in 7-10 business days
6498-84128-60-00SPACER$21.59$17.70Usually ships in 7-10 business days
71M1-84137-60-00BOLT, SPECIAL$7.49$6.74Usually ships in 7-10 business days
83J0-84130-60-00BODY ASSEMBLY, HEADLIGHT | BLACK$71.99$56.15Usually ships in 7-10 business days
9498-84145-60-00COLLAR, BODY FITTING$7.49$6.74Usually ships in 7-10 business days
10498-84163-60-00DAMPER$8.49$7.64Usually ships in 7-10 business days
111M1-84164-60-00DAMPER$28.99$23.77Usually ships in 7-10 business days
1290101-08499-00

(replaces part #
97306-08040-00)

BOLT$21.99$19.26Usually ships in 7-10 business days
1392907-08100-00

(replaces part #
92902-08100-00)

WASHER, SPRING$9.49$7.4010+ In-Stock
1492907-08200-00

(replaces part #
92906-08200-00)

WASHER$9.49$7.4010+ In-Stock
1595333-08600-00NUT$3.80$3.4710+ In-Stock
