1982 Yamaha XT125 Exhaust OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

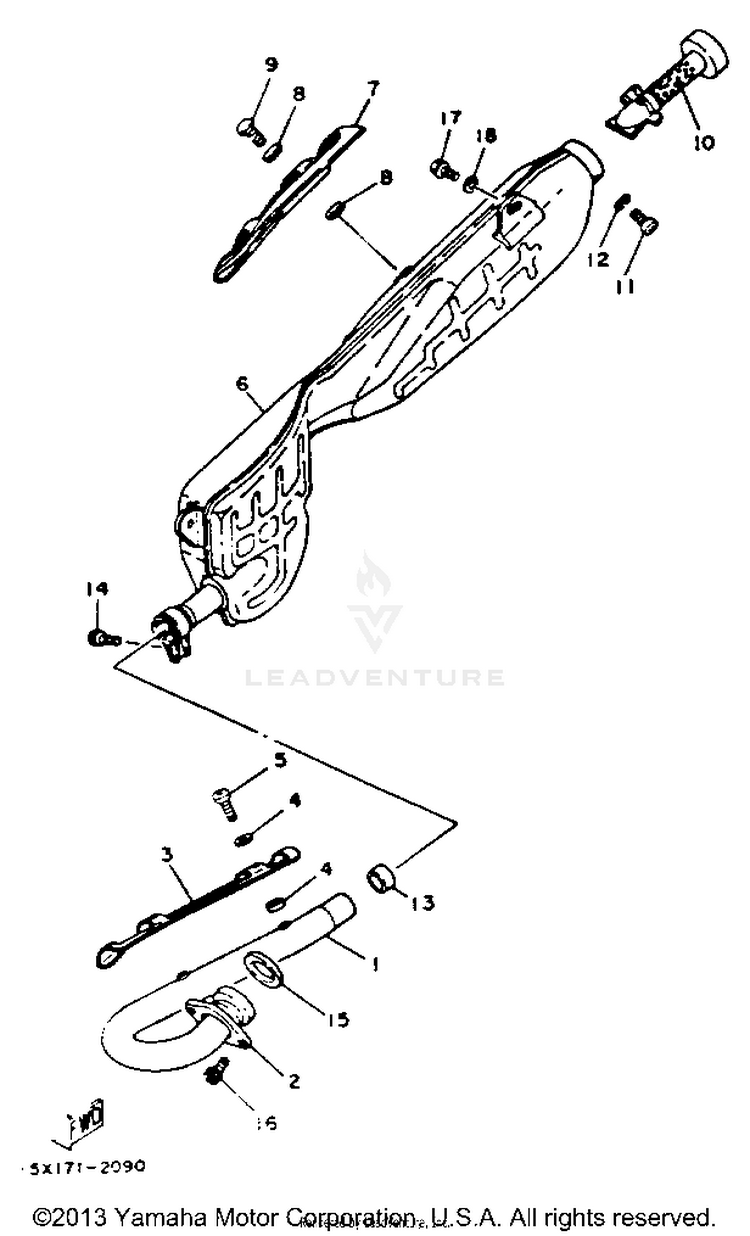

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115A-14611-60-00PIPE, EXHAUST L$101.99$79.55Not Shipping
25H0-14612-01-00

(replaces part #
5H0-14612-00-00)

NUT, RING$17.99$14.033 In-Stock
315A-14628-00-00PROTECTOR, EXHAUST PIPE$54.99$42.89Not Shipping
490202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
598907-06008-00

(replaces part #
98906-06008-00)

SCREW, BIND$9.49$7.406 In-Stock
615A-14711-00-00MUFFLER L$309.99$241.79Not Shipping
715A-14728-00-00PROTECTER, MUFFLER 2$26.99$22.13Not Shipping
890202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
998907-06008-00

(replaces part #
98906-06008-00)

SCREW, BIND$9.49$7.406 In-Stock
1015E-14752-00-00PIPE, OUTLET$39.99$32.79Not Shipping
1197885-06008-00

(replaces part #
98580-06008-00)

SCREW, PAN HEAD$1.20$1.032 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
134DN-14714-01-00

(replaces part #
4H7-14714-00-00)

GASKET, MUFFLER$71.99$56.15Usually ships in 7-10 business days
1491317-08020-00

(replaces part #
91316-08020-00)

BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
154BE-14613-00-00GASKET, EXHAUST PIPE$10.99$8.5710+ In-Stock
1691317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
1795817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1890201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
