1982 Yamaha XT125 Oil Pump OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

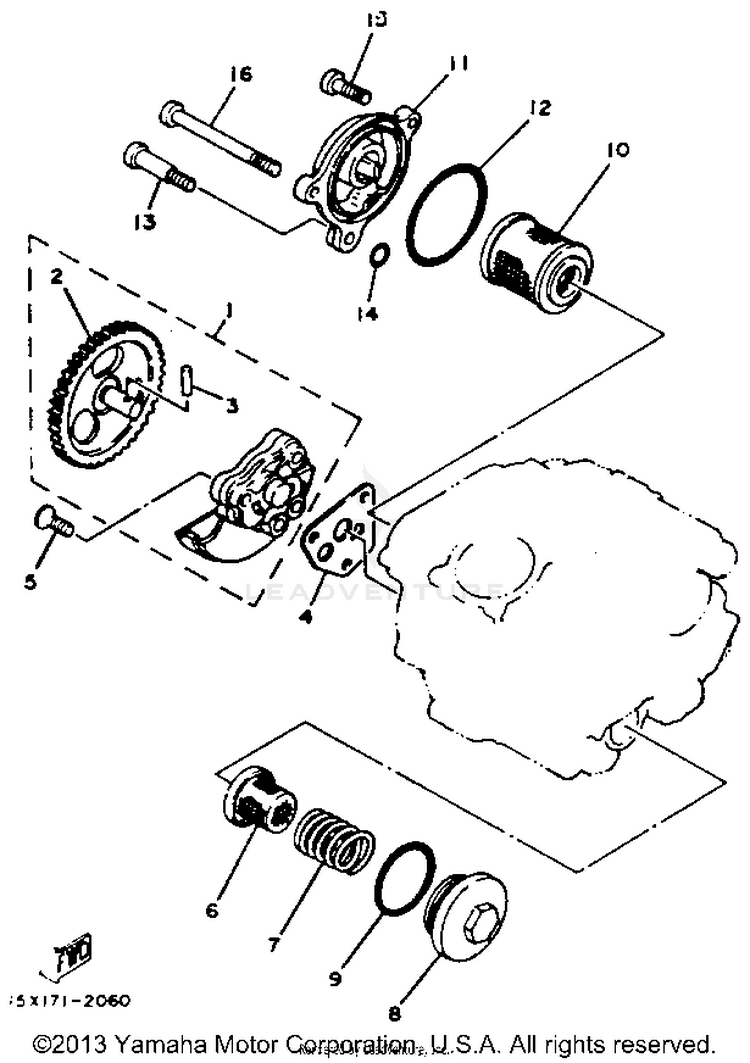

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-13300-02-00

(replaces part #
5H0-13300-00-00)

OIL PUMP ASSY$179.99$140.393 In-Stock
25H0-13326-01-00

(replaces part #
5H0-13326-00-00)

GEAR, PUMP DRIVEN 2 (45T)$43.99$36.07Usually ships in 7-10 business days
393603-12030-00PIN, PLUNGER$2.80$2.4110+ In-Stock
43GD-13329-00-00

(replaces part #
4BE-13329-00-00)

GASKET, PUMP COVER$8.49$6.62
598707-06030-00

(replaces part #
98701-06030-00)

SCREW, FLAT HEAD$7.99$6.237 In-Stock
651Y-13411-00-00STRAINER, OIL$41.99$32.7510+ In-Stock
790501-18576-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
85H0-15351-00-00PLUG, DRAIN$34.99$27.2910+ In-Stock
993210-347A1-00

(replaces part #
93210-35389-00)

O-RING$8.49$6.6210+ In-Stock
105H0-13440-09-00

(replaces part #
5H0-13440-00-00)

ELEMENT ASSY, OIL CLEANER$11.49$9.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
1115A-13447-01-00

(replaces part #
15A-13447-00-00)

COVER, OIL ELEMENT$32.99$27.05Usually ships in 7-10 business days
1293210-54175-00O-RING$13.99$10.9110+ In-Stock
1390109-06419-00BOLT$9.49$7.4010+ In-Stock
1493210-07438-00O-RING$9.49$7.404 In-Stock
1598517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1698507-06075-00

(replaces part #
98506-06075-00)

SCREW, PAN HEAD$7.99$6.232 In-Stock
