1982 Yamaha XT125 Side Cover - Tool OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

SIDE COVER - TOOL

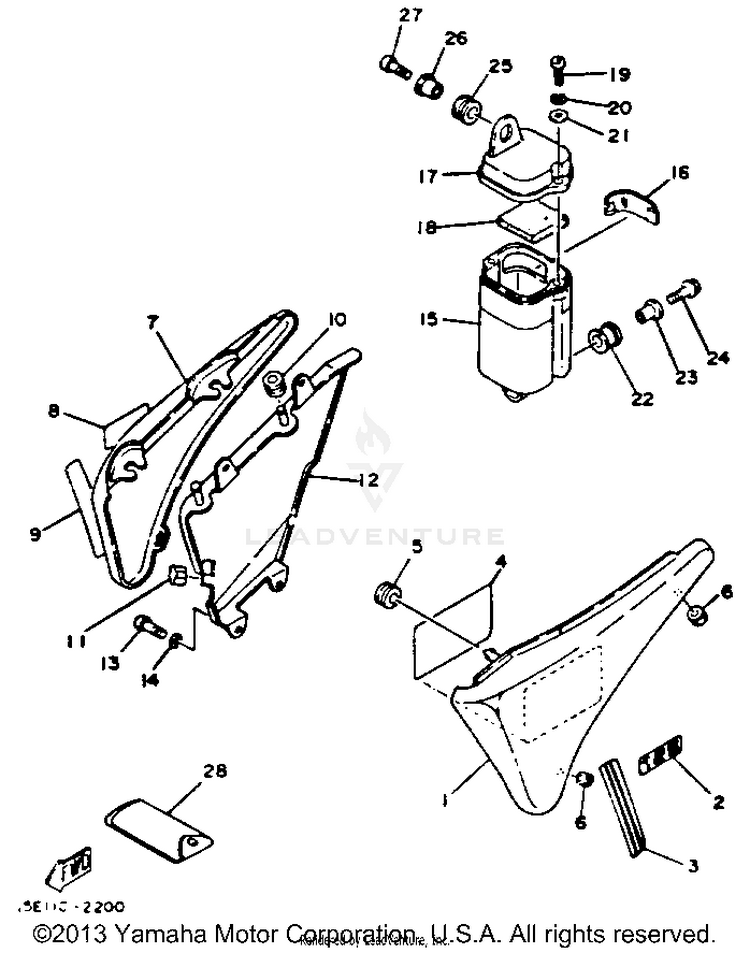

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115A-21711-00-E1COVER, SIDE 1 | CHAPPY RED$72.99$56.93Usually ships in 7-10 business days
215E-21781-00-00EMBLEM 1$2.15$1.94Usually ships in 7-10 business days
315A-2173E-00-00GRAPHIC$8.49$7.64Usually ships in 7-10 business days
415E-21683-01-00PLATE, SPEC$9.08$8.17Usually ships in 7-10 business days
590480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
690480-12320-00GROMMET$9.49$7.4010+ In-Stock
715A-21721-00-E1COVER, SIDE 2 | CHAPPY RED$83.99$65.51Not Shipping
815E-21781-00-00EMBLEM 1$2.15$1.94Usually ships in 7-10 business days
915A-2173F-00-00GRAPHIC$8.49$7.64Usually ships in 7-10 business days
1090480-12053-00GROMMET$8.49$6.6210+ In-Stock
1115A-21717-00-00DAMPER$7.49$6.74Usually ships in 7-10 business days
1215A-14718-01-00PROTECTOR, MUFFLER 1$56.99$44.45Usually ships in 7-10 business days
1398517-06012-00

(replaces part #
98516-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
1492907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
1515A-2177A-01-00BOX$35.99$29.51Not Shipping
1615A-2177J-00-00LID 2$13.49$11.06Not Shipping
1715A-2177E-00-00LID$22.99$18.85Not Shipping
1851L-28371-00-00DAMPER, LOCATING 3$7.49$5.84Not Shipping
1998580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
2092990-05100-00WASHER, SPRING-$0.8310+ In-Stock
2192990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
2215A-21746-00-00DAMPER$6.47$5.82Not Shipping
2390387-06166-00

(replaces part #
90387-060G8-00)

COLLAR$13.49$10.526 In-Stock
2495817-06030-00

(replaces part #
95811-06030-00)

BOLT,FLANGE$4.65$4.0010+ In-Stock
2590480-14023-00GROMMET$8.49$6.6210+ In-Stock
2690387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
2795817-06025-00

(replaces part #
90153-06037-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
2836X-W2810-00-00TOOL KIT (5H0-28100-10-00)$95.99$74.87Usually ships in 7-10 business days
