1982 Yamaha XT125 Swing Arm OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SWING ARM

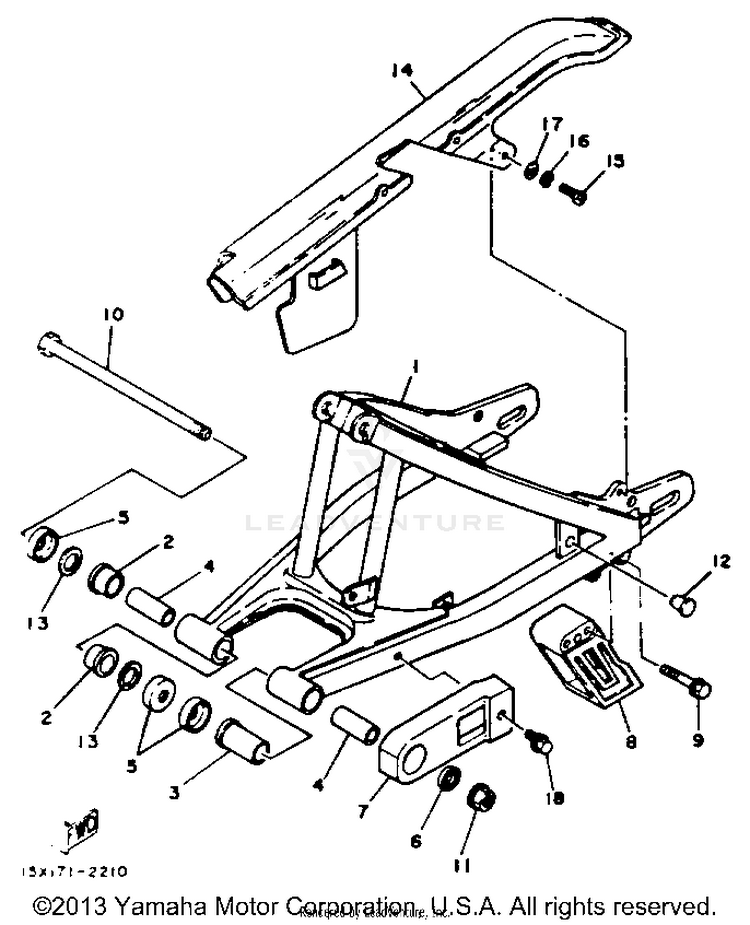

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115A-22110-01-35

(replaces part #
15A-22110-00-35)

REAR ARM | SILVER$252.99$197.52Usually ships in 7-10 business days
215A-22123-00-00BUSH 1$32.99$27.05Usually ships in 7-10 business days
390386-18028-00BUSH$29.99$23.3910+ In-Stock
490387-124R8-00

(replaces part #
15A-22126-00-00)

COLLAR$16.99$13.93Usually ships in 7-10 business days
5401-22128-01-00COVER, THRUST 1$31.99$24.953 In-Stock
692109-18020-00UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
715A-22151-01-00SEAL, GUARD$14.49$11.88Usually ships in 7-10 business days
810V-22153-00-00GUARD, CHAIN$49.99$40.99Usually ships in 7-10 business days
995817-06050-00

(replaces part #
95811-06050-00)

BOLT, FLANGE$4.60$4.14Usually ships in 7-10 business days
104V0-22141-00-00SHAFT, PIVOT$14.49$11.88Usually ships in 7-10 business days
1190185-12072-00NUT, SELF-LOCKING$10.49$8.186 In-Stock
1290338-11111-00PLUG, SPECIAL SHAPE$2.60$2.34Usually ships in 7-10 business days
13401-22127-00-00SHIM$8.49$6.623 In-Stock
1415A-22310-00-00CHAIN CASE ASSEMBLY | LOW GLOSS BLACK$60.99$47.57Usually ships in 7-10 business days
1598507-06016-00

(replaces part #
98506-06016-00)

SCREW,PAN HEAD$3.48$2.9910+ In-Stock
1692907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
1790201-062A8-00WASHER, PLATE$9.49$7.4010+ In-Stock
1890119-05062-00BOLT, WITH WASHER$10.49$8.185 In-Stock
