1982 Yamaha XT125 Seat OEM Parts Diagram

Submodel XT125J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

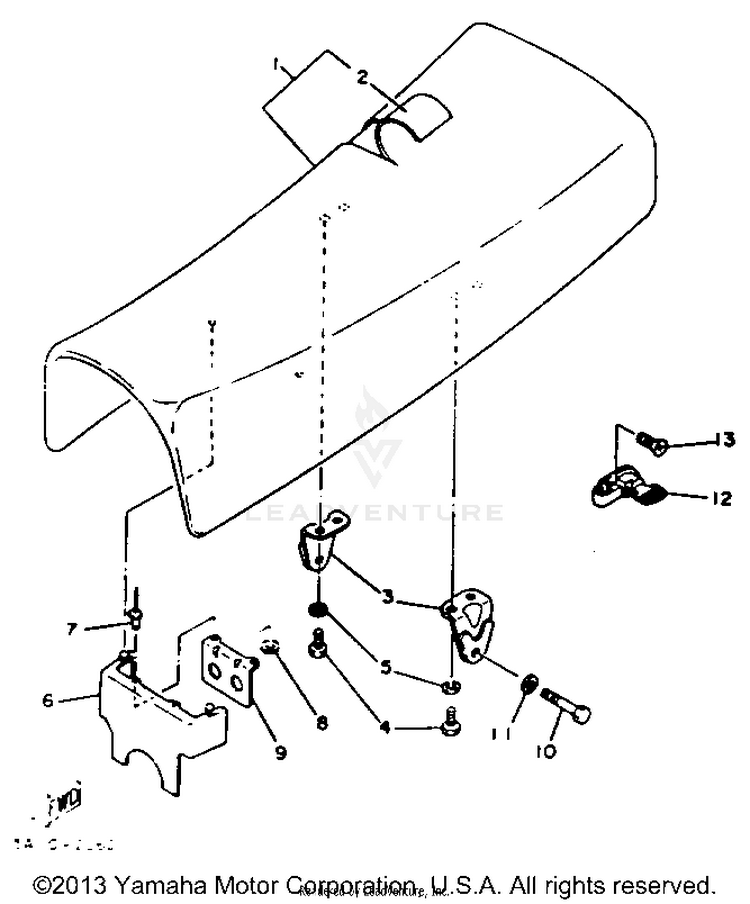

SEAT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115A-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$372.99$290.93Usually ships in 7-10 business days
215A-24731-00-00COVER, DOUBLE SEAT$73.99$57.71Not Shipping
315A-24738-00-00BRACKET, SEAT$11.99$9.83Usually ships in 7-10 business days
497D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
615A-21622-00-00BAND, FLAP$3.57$3.21Usually ships in 7-10 business days
790267-32019-00RIVET, BLIND$0.70$0.63Usually ships in 7-10 business days
890201-033H3-00WASHER, PLATE$2.25$2.02Usually ships in 7-10 business days
915A-21642-00-00GUARD, FLAP$17.16$14.07Usually ships in 7-10 business days
1097017-06020-00

(replaces part #
97016-06020-00)

BOLT$4.06$3.4910+ In-Stock
1192907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
125H0-21308-01-00

(replaces part #
55E-21308-00-00)

HELMET HANGER ASSY$91.99$71.75Usually ships in 7-10 business days
1398707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
