1992 Yamaha WR200 Crankcase Cover 1 OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER 1

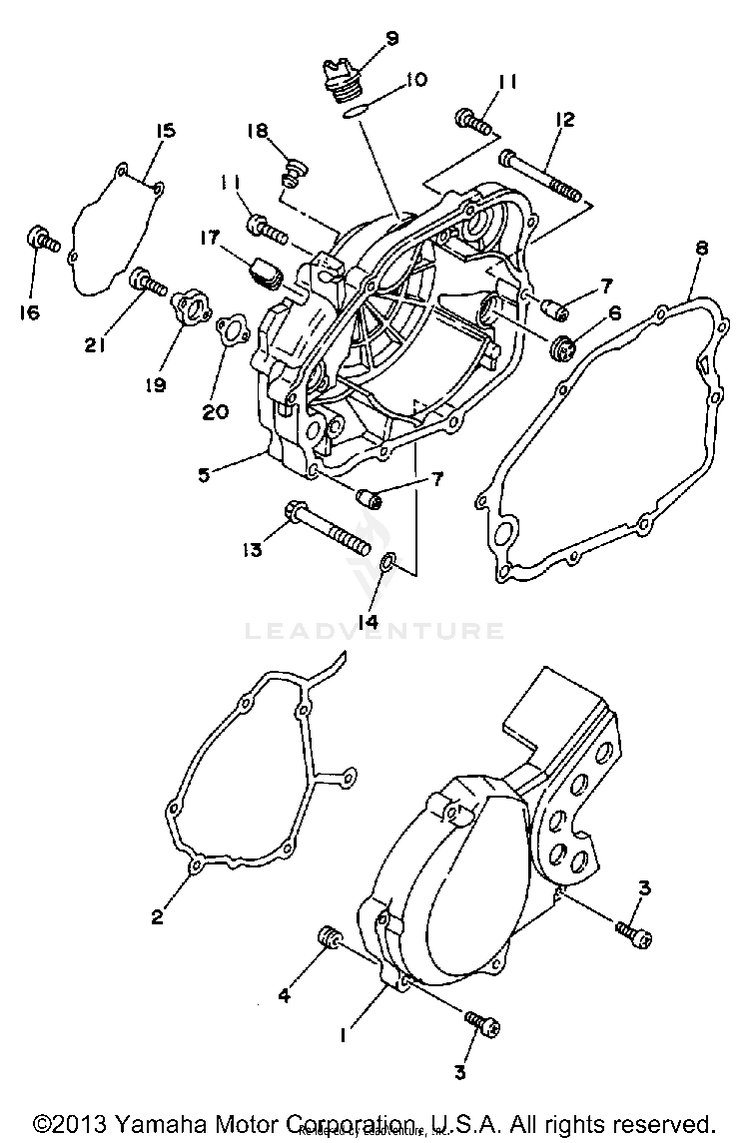

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13BN-15411-11-00

(replaces part #
3BN-15411-10-00)

COVER,CRANK CASE L$85.99$67.07Not Shipping
23ET-15379-00-00SEAL, CRANKCASE$38.99$31.97Usually ships in 7-10 business days
390157-06115-00SCREW, PAN HEAD$17.49$14.34Usually ships in 7-10 business days
490480-09481-00GROMMET$9.49$8.542 In-Stock
53XP-15421-01-00COVER, CRANKCASE R (3XP-15421-0 | SEE NOTE$222.99$173.93Usually ships in 7-10 business days
63Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
799530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
83XP-15451-03-00

(replaces part #
3BN-15451-10-00)

GASKET,CRCS COVER$35.99$29.51Usually ships in 7-10 business days
93Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
1093210-19123-00O-RING$8.99$7.0110+ In-Stock
1197885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
1298580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
1395817-08080-00

(replaces part #
95801-08080-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
1490201-08087-00WASHER, PLATE$3.95$3.4010+ In-Stock
154BF-15416-00-00COVER, OIL PUMP$33.99$27.87Usually ships in 7-10 business days
1697885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
174BF-15357-00-00GROMMET$15.99$13.11Usually ships in 7-10 business days
184BF-15189-00-00PLUG$39.99$32.79Not Shipping
19161-15426-00-00COVER, OIL PUMP R$36.99$30.33Usually ships in 7-10 business days
20126-13116-01-00

(replaces part #
3MT-13116-00-00)

GASKET, PUMP CASE$9.99$7.795 In-Stock
2197885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
