1992 Yamaha WR200 Generator OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

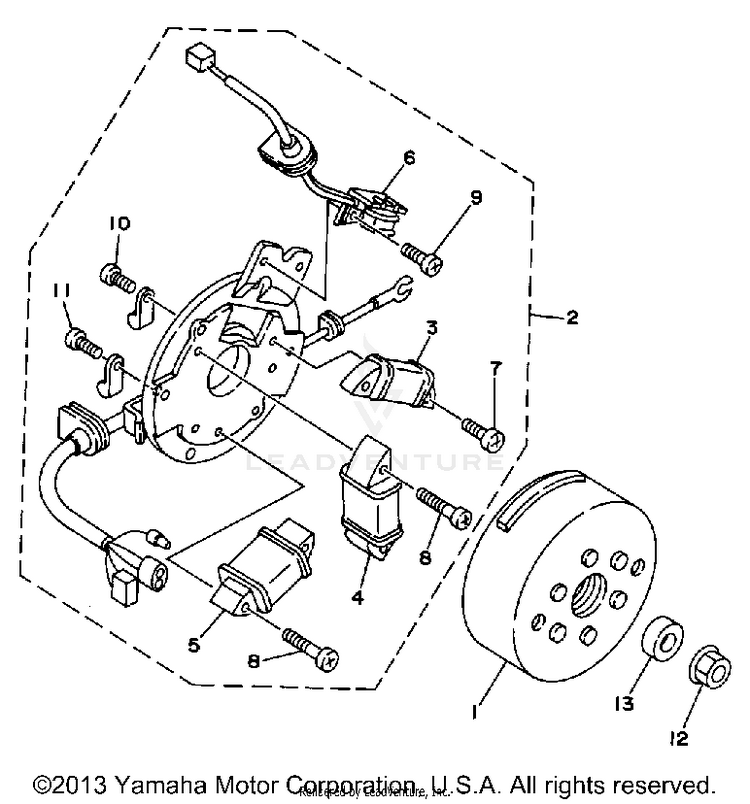

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BF-85550-00-00ROTOR ASSEMBLY$347.99$271.43Usually ships in 7-10 business days
24BF-85560-01-00

(replaces part #
4BF-85560-00-00)

BASE ASSY$400.99$312.77Usually ships in 7-10 business days
337A-85520-M2-00

(replaces part #
37A-85520-M1-00)

COIL, CHARGE$95.99$74.87Usually ships in 7-10 business days
44BF-81313-00-00COIL, LIGHTING 1$57.77$45.06Usually ships in 7-10 business days
54BF-81314-00-00COIL, LIGHTING 2$57.77$45.06Usually ships in 7-10 business days
64BF-85595-00-00GROMMET$114.99$89.69Not Shipping
798580-04014-00

(replaces part #
98503-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
898517-04025-00

(replaces part #
98511-04025-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
998580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1098517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1198517-04006-00

(replaces part #
98511-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1290179-12657-00

(replaces part #
90179-12421-00)

NUT$6.49$5.0610+ In-Stock
1390201-123L6-00WASHER, PLATE$15.49$12.085 In-Stock
